MSRP | ($5,442) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Weight | 52.0 lbs | |
Frame | ||
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| Magura MT5 Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 625Wh | ||
Drivetrain | Belt Drive, Internally Geared Hub | |
Suspension | Hardtail | |
Front Travel | 45mm | |
Brand Site | ||

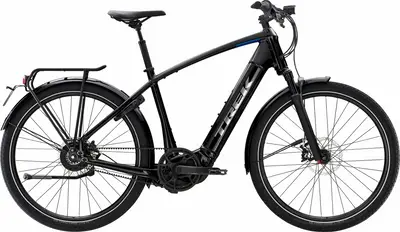

Summary | The Trek Allant+ 9S is a 650b commuter e-bike with magura mt5 hydraulic disc brakes. | |
Ask 99 Spokes
Fork | SR Suntour Mobie25, 45 mm travel, preload, rebound and lockout, tapered alloy steerer, post-mount disc Travel: 45mm Spring Type: Coil | |
|---|---|---|
Stem | Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length | |
Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width | |
Saddle | Bontrager Commuter Comp | |
Seatpost | Alloy, suspension, 31.6 mm, 300 mm length Type: Suspension | |
Pedals | Bontrager City pedals | |
Grips | Bontrager Satellite Elite, alloy lock-on |
Crank | ProWheel alloy, 175 mm length | |
|---|---|---|
Shifters | Enviolo Trekking manual twist shifter | |
Cassette | Gates CDX, 22 T, steel | |
Brakes | Size: L, XL, Magura MT5NE, 4-piston hydraulic disc brake w/brake light switch; Size: L, XL, Magura MT4NE, 4-piston hydraulic disc brake w/brake light switch Type: Magura MT5 Hydraulic Disc |
Rims | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve | |
|---|---|---|
Front Hub | Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle | |
Rear Hub | Enviolo Trekking, 32-hole, 6-bolt disc, 44T | |
Tires | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" | |
Disc Rotors | Magura Speed Pedelec, 6-bolt, 180 mm |
Motor | Bosch Performance Speed, 85 Nm, 45 km/h (28 mph), 25 km/h in Europe | |
|---|---|---|
Battery | Bosch PowerTube, 625 Wh | |
Display | Bosch Intuvia | |
Charger | Bosch standard 4A, 220-240 V |
Lights | Size: L, XL, Busch & Muller Top Light, taillight; Size: L, XL, Spanninga LED | |
|---|---|---|
Fenders | SKS plastic | |
Racks | MIK-compatible alloy rear rack, maximum load 25 kg |
