MSRP | ($3,925) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Weight | 42.7 lbs | |
Frame | Aluminum | |
| Suntour MOBIE | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| Shimano Hydraulic Disc | ||
| Bosch 250W 85Nm mid-drive | ||
| Bosch 500Wh | ||
| Alivio, Altus | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 50mm | |
Brand Site | ||

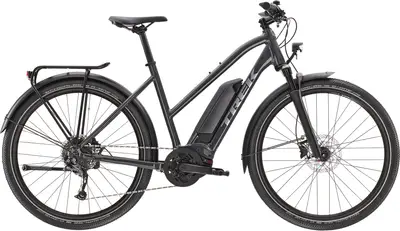

Summary | The Trek Allant+ 5 Stagger is a 650b aluminum frame commuter e-bike with mid-range components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR Color: Solid Charcoal | |
|---|---|---|
Fork | SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15 mm thru-axle, 50 mm travel Travel: 50mm Spring Type: Coil | |
Stem | Size: S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length | |
Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 660 mm width | |
Saddle | Bontrager Commuter Comp | |
Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Type: Rigid | |
Pedals | VP Resin | |
Grips | Bontrager Satellite Elite, alloy lock-on |
Rear Derailleur | Size: S, M, L, Shimano Alivio M3100, long cage; Size: S, M, L, Shimano Alivio M4000, long cage, 36T max cog | |
|---|---|---|
Crank | Size: S, M, ProWheel alloy, 170 mm; Size: L, ProWheel alloy, 175mm | |
Shifters | Shimano Altus M2010, 9-speed | |
Cassette | Shimano HG200, 11-36, 9-speed | |
Chain | KMC E9S, 9-speed | |
Brakes | Shimano MT200 hydraulic disc Type: Shimano Hydraulic Disc |
Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve | |
|---|---|---|
Front Hub | Bontrager Disc, 32-hole, 6-bolt disc, 15 mm alloy thru-axle | |
Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR | |
Tires | Schwalbe G-One, 650Bx57 c | |
Disc Rotors | Shimano RT26, 6-bolt,180 mm |
Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand | |
|---|---|---|
Battery | Bosch Powerpack Performance 500 downtube | |
Remote | Bosch Purion | |
Charger | Bosch standard 4A (220-240 V) charger |
Lights | Size: S, M, L, Herrmans MR-GO, 100 lumen, 35 lux; Size: S, M, L, Spanninga SOLO for e-bike | |
|---|---|---|
Racks | Racktime Lightit |
