Bike Comparison
    4500 Disc2012 Trek
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Frame
    		Aluminum
    Fork
    Wheels
    		Aluminum
    Wheel Size
    		26″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Deore, Acera
    Drivetrain
    		3 × 9
    Brand Site

    archive.trekbikes.com

    Summary

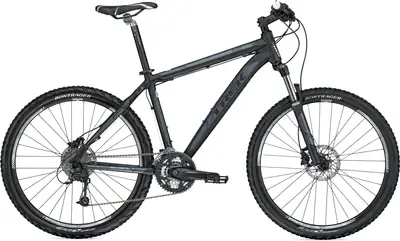

    		The Trek 4500 Disc is a 26″ aluminum frame crosscountry bike with upper mid-range components.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    4500 Disc

    Highest gear

    (descending)

    Geometry
    Specs
    4500 Disc2012 Trek
    Frame

    Alpha Gold Aluminum w/semi-integrated head tube, formed down tube w/integrated gusset, formed top tube, monostay seatstay, forged dropouts w/rack & fender mounts, replaceable derailleur hanger

    Headset

    1-1/8" threadless, semi-integrated, semi-cartridge bearings

    Stem

    Bontrager Race Lite, 31.8mm

    Handlebar

    Bontrager Low Riser, 31.8mm, 15mm rise, 9 degree sweep

    Saddle

    Bontrager Evoke 1

    Seatpost

    Bontrager SSR, 31.6mm, 20mm offset

    Pedals

    Wellgo alloy platform

    Groupset
    Rear Derailleur

    Shimano Deore M591

    Front Derailleur

    Shimano Acera

    Crank

    Shimano Alivio M4308, 44/32/22

    Shifters

    Shimano Alivio M430, 9 speed

    Cassette

    Shimano HG20-9 11-34, 9 speed

    Brakes

    Shimano M446 hydraulic disc brakes

    Wheels
    Rims

    Shimano RM35 alloy center lock hubs; Bontrager AT-850 disc 32-hole rims

    Tires

    Bontrager XR2, wire bead, 26x2.1"
