MSRP | $4,199 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Folding, E-Bike | |
Weight | 48.7 lbs | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Magura MT4 Hydraulic Disc | ||
| Bosch 600W 65Nm mid-drive | ||
| Bosch 400Wh | ||
| Deore | ||
Drivetrain | 1 × 10 | |
Brand Site | ||

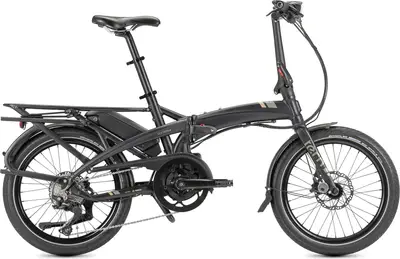

Summary | The Tern Vektron S10 is a 20″ aluminum frame folding e-bike with upper mid-range components and magura mt4 hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies Colors: Satin Black; Silver | |
|---|---|---|
Fork | Tern Tarsus, 6061-Al, hydroformed | |
Bottom Bracket | Motor integrated | |
Headset | Flux Pro, angular contact bearings, Physis integrated | |
Stem | Tern Andros, adjustable, forged construction, patented technology | |
Handlebar | Kinetix Comp, double-butted 6061-AL, Tern Andros adapted | |
Saddle | Tern Porter+, patented GripPad design, PrimeGel padding | |
Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL Type: Rigid | |
Pedals | MKS EZY |
Rear Derailleur | Shimano Deore Shadow+ | |
|---|---|---|
Crank | Vektron custom, forged 6061-AL crankarm | |
Shifters | Shimano Deore, 1 x 10 spd | |
Cassette | Shimano 11-36T, 10 spd | |
Chain | 10 spd, DHT for eBike, GST corrosion resistant coating | |
Chain Guide | SKS Chainblade | |
Brakes | Front: Magura MT4, hydraulic disc, Rear: Magura MT4, hydraulic disc Type: Magura MT4 Hydraulic Disc | |
Brake Levers | Magura, hydraulic disc |
Rims | Kinetix Comp, for disc | |
|---|---|---|
Front Hub | Novatec, sealed cartridge bearing, disc | |
Rear Hub | Novatec, sealed cartridge bearing, disc | |
Tires | Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex |
Motor | Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) | |
|---|---|---|
Battery | Bosch PowerPack 400 Wh | |
Display | Bosch Purion, 4 mode selectable, walk assist | |
Charger | 220V, 4A (EU); 100-240V, 4A (US) |
Lights | Front: Tern Valo Direct, 190 lumens, Rear: Herrmans H-Trace, for eBike | |
|---|---|---|
Fenders | SKS, stainless hardware | |
Racks | Yes | |
Bell | Aluminum |
