    Quick Haul D92022 Tern
    Recommended
    MSRP
    ($3,606)
    Where to Buy
    —
    $1

    At

    Category
    		Utility, E-Bike
    6.3
    Frame
    		Aluminum
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		20″
    		Hydraulic Disc
    		Bosch 600W 50Nm mid-drive
    		Bosch 400Wh
    		Altus
    Drivetrain
    		1 × 9
    Brand Site

    ternbicycles.com

    Summary

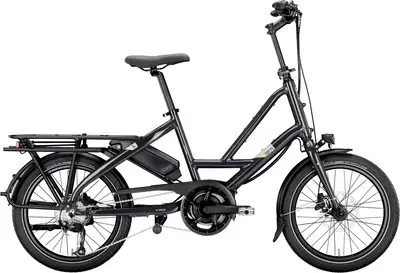

    		The Tern Quick Haul D9 is a 20″ aluminum frame utility e-bike with modest components and hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Quick Haul D92022 Tern
    Frame

    Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg

    Colors: Quick Haul - Beetle Blue; Quick Haul - Slate

    Fork

    Cargo, steel, EFBE approved: 150 kg

    Bottom Bracket

    Motor integrated

    Headset

    Tern Flux by FSA, cartridge bearings, Physis integrated

    Stem

    Speedlifter, 150 mm extension, 3D Forged stem, 31.8

    Handlebar

    Low riser, 31.8, 6061-AL

    Saddle

    Velo Comfort

    Seatpost

    31.6 mm, 6061-AL, micro-adjust clamp

    Type: Rigid

    Pedals

    Contec CP-030

    Groupset
    Rear Derailleur

    Shimano Altus Shadow

    Crank

    Tern custom, forged 6061-AL crankarm

    Shifters

    Shimano Altus, 1 x 9 spd, trigger

    Cassette

    Shimano 11-34T, 9 spd

    Chain

    KMC for eBike, 9 spd

    Chain Guide

    SKS Chainblade

    Brakes

    Front: Clarks, hydraulic disc, 180 mm rotor, Rear: Clarks, hydraulic disc

    Type: Hydraulic Disc

    Brake Levers

    Clarks, hydraulic disc

    Wheels
    Rims

    Schürmann, Disc

    Front Hub

    Disc, aluminum

    Rear Hub

    9 spd, disc, aluminum

    Tires

    Schwalbe Big Apple, 55-406, puncture protection, Reflex

    Electric Components
    Motor

    Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU)

    Battery

    Bosch PowerPack 400

    Display

    Bosch Intuvia, 4 mode selectable, walk assist

    Charger

    Compact Charger, 100-240V, 2A

    Accessories
    Lights

    Front: Contec DLUX 50N++, 50 Lux, Rear: Contec TL-335

    Fenders

    Chromeplastic, stainless hardware

    Racks

    Combo Mount

    Bell

    Aluminum
