MSRP | $2,999 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Utility, E-Bike | |
Weight | 50.3 lbs | |
Frame | Aluminum | |
| Steel | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Shimano Hydraulic Disc | ||
| Bosch 600W 50Nm mid-drive | ||
| Bosch 400Wh | ||
| Altus | ||
Drivetrain | 1 × 8 | |
Brand Site | ||

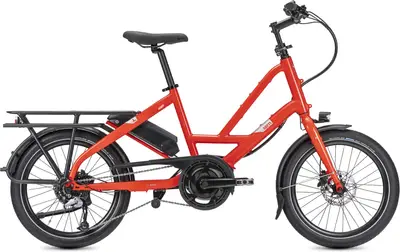

Summary | The Tern Quick Haul D8 is a 20″ aluminum frame utility e-bike with modest components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg Color: Quick Haul - Tabasco | |
|---|---|---|
Fork | Cargo, steel, EFBE approved: 150 kg | |
Bottom Bracket | Motor integrated | |
Headset | TH, cartridge bearings | |
Stem | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 | |
Handlebar | Low riser, 31.8, 6061-AL | |
Saddle | Velo Comfort | |
Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp Type: Rigid | |
Pedals | Urban with non-slip surface |
Rear Derailleur | Shimano Altus Shadow | |
|---|---|---|
Crank | Tern custom, forged 6061-AL crankarm | |
Shifters | Shimano Altus, 1 x 8 spd, trigger | |
Cassette | Shimano 11-34T, 8 spd | |
Chain | KMC for eBike, 8 spd | |
Chain Guide | SKS Chainblade | |
Brakes | Front: Shimano, hydraulic disc, Rear: Shimano, hydraulic disc Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano, hydraulic disc |
Rims | Kinetix Comp, for disc | |
|---|---|---|
Front Hub | Shimano disc | |
Rear Hub | Shimano disc | |
Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) | |
|---|---|---|
Battery | Bosch PowerPack 400 | |
Display | Bosch Purion | |
Charger | Compact Charger, 100-240V, 2A |
Lights | Front: Herrmans, 120 lumens, Rear: Herrmans | |
|---|---|---|
Fenders | Chromeplastic, stainless hardware | |
Racks | Combo Mount | |
Bell | Aluminum |
