MSRP | ($3,606) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Utility, E-Bike | |
Frame | Aluminum | |
| Steel | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Hydraulic Disc | ||
| Bosch 600W 40Nm mid-drive | ||
| Bosch 400Wh | ||
| Nexus | ||
Drivetrain | Internally Geared Hub | |
Brand Site | ||

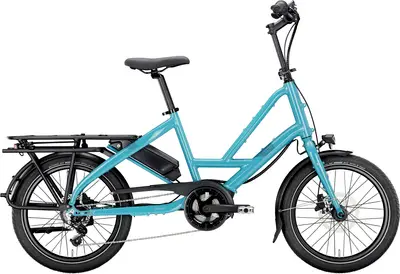

Summary | The Tern Quick Haul D7i is a 20″ aluminum frame utility e-bike with modest components and hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg Colors: Quick Haul - Beetle Blue; Quick Haul - Slate | |
|---|---|---|
Fork | Cargo, steel, EFBE approved: 150 kg | |
Bottom Bracket | Motor integrated | |
Headset | Tern Flux by FSA, cartridge bearings, Physis integrated | |
Stem | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 | |
Handlebar | Low riser, 31.8, 6061-AL | |
Saddle | Velo Comfort | |
Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp Type: Rigid | |
Pedals | Contec CP-030 |
Crank | Tern custom, forged 6061-AL crankarm | |
|---|---|---|
Shifters | Shimano Nexus, 7 spd, twist | |
Cassette | For hub gear | |
Chain | KMC for eBike | |
Chain Guide | SKS Chainblade | |
Brakes | Front: Clarks, hydraulic disc, 180 mm rotor, Rear: Clarks, hydraulic disc Type: Hydraulic Disc | |
Brake Levers | Clarks, hydraulic disc |
Rims | Schürmann, Disc | |
|---|---|---|
Front Hub | Disc, aluminum | |
Rear Hub | Shimano Nexus 7, disc, freewheel | |
Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Motor | Bosch Active Line, 250% Assist, 40 Nm Torque, max speed 25 kph (EU) | |
|---|---|---|
Battery | Bosch PowerPack 400 | |
Display | Bosch Intuvia, 4 mode selectable, walk assist | |
Charger | Compact Charger, 100-240V, 2A |
Lights | Front: Contec DLUX 50N++, 50 Lux, Rear: Contec TL-335 | |
|---|---|---|
Fenders | Chromeplastic, stainless hardware | |
Racks | Combo Mount | |
Bell | Aluminum |
