MSRP | $4,099 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Utility, E-Bike | |
Weight | 56.7 lbs | |
Frame | Aluminum | |
| Suntour | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Shimano Hydraulic Disc | ||
| Bosch 600W 65Nm mid-drive | ||
| Bosch 500Wh | ||
| Alivio | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 70mm | |
Brand Site | ||

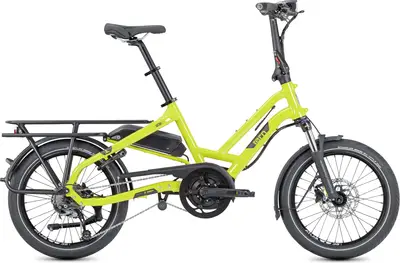

Summary | The Tern HSD P9 Performance is a 20″ aluminum frame utility e-bike with mid-range components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg Colors: Blue; Limon | |
|---|---|---|
Fork | Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 170 kg Travel: 70mm | |
Bottom Bracket | Motor integrated | |
Headset | Tern Flux by FSA, cartridge bearings, Physis integrated | |
Stem | Tern Andros, adjustable, forged construction, patented technology | |
Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted | |
Saddle | Tern Upright by Velo | |
Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL Type: Rigid | |
Pedals | Urban with non-slip surface |
Rear Derailleur | Shimano Alivio Shadow | |
|---|---|---|
Crank | Tern HSD custom | |
Shifters | Shimano Alivio, 1 x 9 spd, trigger | |
Cassette | Shimano 11-32T, 9 spd | |
Chain | 9 spd, DHT for eBike, GST corrosion resistant coating | |
Chain Guide | SKS Chainblade | |
Brakes | Front: Shimano, hydraulic disc, 180 mm rotor, Rear: Shimano, hydraulic disc, 160 mm rotor Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano, hydraulic disc |
Rims | Front: Tern Atlas H, cargo wheel, Rear: Tern Atlas H, cargo wheel | |
|---|---|---|
Front Hub | Novatec, Thru-axle, sealed bearings | |
Rear Hub | Shimano disc | |
Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Motor | Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) | |
|---|---|---|
Battery | Bosch PowerPack 500 | |
Display | Bosch Purion | |
Charger | 220V, 4A (EU); 100-240V, 4A (US) |
Lights | Front: Tern Valo Direct, 190 lumens, Rear: Herrmans H-Trace, for eBike | |
|---|---|---|
Fenders | SKS, stainless hardware | |
Racks | Combo Mount | |
Bell | Aluminum |
