MSRP | $2,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Weight | 67.8 lbs | |
Frame | Aluminum | |
| Suntour XCT | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| Tektro Hydraulic Disc | ||
| Bafang 500W 45Nm hub-drive | ||
| 672Wh | ||
| Alivio | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 80mm | |
Brand Site | ||

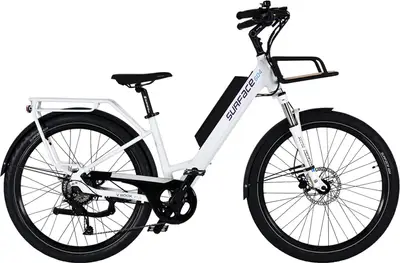

Summary | The Surface 604 V Rook is a 650b aluminum frame commuter e-bike with mid-range components and tektro hydraulic disc brakes. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | SR Suntour XCT 30 Spring Suspension, 80mm Travel, Steel Stanchions, Lockout Adjust, Preload Adjust, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer Travel: 80mm Spring Type: Coil | |
Headset | Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8" | |
Stem | Surface 604 Branded, Adjustable Angle 0° to 90°, 70mm Base Height, 90mm Length, One 20mm Tapered Spacer, Two 10mm Spacers, 31.8mm Clamp Diameter | |
Handlebar | Aluminum Alloy, 30mm Low-Rise, 680mm Length, 45° Backsweep | |
Saddle | Selle Royal Essenza Plus | |
Seatpost | Aluminum Alloy with Forged Single-Bolt Clamp Type: Rigid | |
Pedals | Wellgo Aluminum Alloy Platform, Wide with Integrated Pins, Black | |
Grips | Stitched Faux Leather, Ergonomic, Black, Locking |
Crank | Samox, Forged Alloy, 170mm Length, Sealed Cartridge Bearings, Hollow Spindle, 42 Tooth Steel Chainring | |
|---|---|---|
Shifters | Shimano Alivio Triggers on Right with Optical Gear Windowo (One Way High Lever, Three Shift Low Lever) | |
Cassette | 9 Speed 1x9 Shimano Alivio Derailleur, Shimano CS-HG201-9 Cassette 11-34 Tooth | |
Brakes | Tektro Auriga Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Three-Finger Tektro Levers Motor Inhibitors and Brake Light Activation and Adjustable Reach Type: Tektro Hydraulic Disc |
Rims | Double Wall, 6061 Aluminum Alloy, 35mm Outer Width, 36 Hole, Black | |
|---|---|---|
Spokes | Stainless Steel, 13 Gauge, Black | |
Tires | Custom Surface 604 Branded, 27.5" x 2.40" (60-584) |
Motor | Weight: 7.5 lbs (3.4 kg), Brand: Bafang RM G020.500.DC, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 45 Newton meters | |
|---|---|---|
Battery | Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion | |
Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port at Base |
