MSRP | $2,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 59.6 lbs | |
Frame | Aluminum | |
| Suntour XCM | ||
Wheels | Aluminum | |
Wheel Size | 26″ | |
| Tektro Hydraulic Disc | ||
| Bafang 500W 65Nm hub-drive | ||
| 672Wh | ||
| X5 | ||
Drivetrain | ||
Suspension | Hardtail | |
Front Travel | 110mm | |
Brand Site | ||

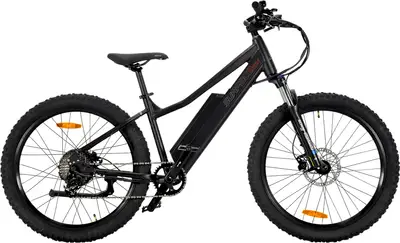

Summary | The Surface 604 Shred XS is a 26″ aluminum frame hardtail crosscountry e-bike with mid-range components. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | SR Suntour XCM 32 Boost Spring Suspension, 110mm Travel, Compression Adjust with Lockout, Preload Adjust, 32mm Steel Stanchions, 110mm Hub Spacing, 15mm Thru Axle with 6mm Hex Bolts Travel: 110mm Spring Type: Coil | |
Headset | Integrated, Sealed Cartridge, Straight 1-1/8" to 1-1/2" Head Tube with Straight Fork Post | |
Stem | Surface 604 Branded, Aluminum Alloy, 0° Angle, 60mm Length, 20mm Tapered Base Spacer, Two 10mm Spacers | |
Handlebar | Aluminum Alloy, Low-Rise, 700mm Length | |
Saddle | Selle Royal, Royalgel Nebula | |
Seatpost | Alloy, Forged Head, Dual Bolt Type: Rigid | |
Pedals | Wellgo Aluminum Alloy Platform with Fixed Pins | |
Grips | Velo, Flat Rubber, Non-Locking, Black |
Rear Derailleur | SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings | |
|---|---|---|
Crank | Samox, Forged Alloy, Sealed Cartridge Bearings, Hollow Spindle, 170mm Length, 38 Tooth Narrow Wide Alloy Chainring | |
Shifters | SRAM X5 Triggers on Right (One-Way High Lever, Three-Shift Low Lever) | |
Cassette | 9 | |
Brakes | Tektro Auriga E-Comp Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers with Resin Composite Pads, Three-Finger Tektro Levers with Adjustable Reach and Motor Inhibitors Type: Tektro Hydraulic Disc |
Rims | Double Wall, Aluminum Alloy, 35.5mm Outer Width, 36 Hole, Black | |
|---|---|---|
Spokes | Stainless Steel, 13 Gauge Front and 12 Gauge Rear, Black with Adjustable Nipples | |
Tires | Innova, 26" x 2.8" (70-559) |
Motor | Weight: 9 lbs (4.08 kg), Brand: Bafang RM G360.500.DC, Type: Rear-Mounted Geared Hub, Learn more about Ebike motors, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 65 Newton meters | |
|---|---|---|
Battery | Weight: 7.7 lbs (3.49 kg), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing, Voltage: 48 volts, Amp Hours: 14 ah, Watt Hours: 672 wh, Chemistry: Lithium-ion | |
Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port on Base | |
Charger | 1.4 lb 2 Amp Charger, Optional 4 Amp Fast Charger |
Lights | Integrated Buchel Shiny 120 E-Bike LED Headlight (120 LUX, Custom Stem Mount) |
|---|
