MSRP | $2,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 57.1 lbs | |
Frame | Aluminum | |
| Suntour XCM | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Hydraulic Disc | ||
| Bafang 500W 65Nm hub-drive | ||
| 672Wh | ||
| Alivio | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 110mm | |
Brand Site | ||

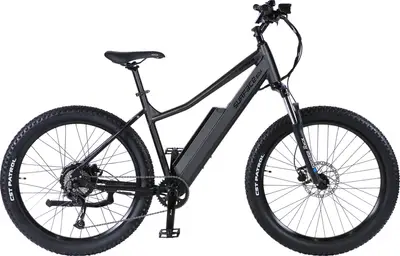

Summary | The Surface 604 Shred is a 27.5″ aluminum frame hardtail crosscountry e-bike with mid-range components. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | SR Suntour XCM 32 Spring Suspension, 110mm Travel, Compression Adjust with Lockout, Preload Adjust, 32mm Steel Stanchions, 110mm Hub Spacing, 15mm Thru Axle with 6mm Hex Bolts Travel: 110mm Spring Type: Coil | |
Headset | Integrated, Sealed Cartridge, Straight 1-1/8" | |
Stem | UNO, Aluminum Alloy, 45° Angle, 90mm Length, 20mm Tapered Base Spacer, One 10mm Spacer, One 5mm Spacer | |
Handlebar | Aluminum Alloy, Low-Rise, 710mm Length | |
Saddle | Selle Royal, Royalgel Nebula | |
Seatpost | Alloy, Forged Head, Dual Bolt Type: Rigid | |
Pedals | Wellgo Aluminum Alloy Platform with Fixed Pins | |
Grips | Velo, Flat Rubber, Locking, Black |
Crank | Samox, Forged Alloy, Sealed Cartridge Bearings, Hollow Spindle, 170mm Length, 38 Tooth Narrow Wide Alloy Chainring | |
|---|---|---|
Shifters | Shimano Alivio Triggers on Right (One-Way High Lever, Three-Shift Low Lever) | |
Cassette | 9 Speed 1x9 Shimano Alivio Derailleur, 11-36 Tooth Cassette | |
Brakes | Tektro Auriga Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers with Resin Composite Pads, Three-Finger Tektro Levers with Adjustable Reach and Motor Inhibitors Type: Tektro Hydraulic Disc |
Rims | Double Wall, Aluminum Alloy, 35.5mm Outer Width, 36 Hole, Black | |
|---|---|---|
Spokes | Stainless Steel, 13 Gauge Front and 12 Gauge Rear, Black with Adjustable Nipples | |
Tires | CST Patrol, 27.5" x 2.8" (71-584) |
Motor | Weight: 9 lbs (4.08 kg), Brand: Bafang RM G360.500.DC, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 65 Newton meters | |
|---|---|---|
Battery | Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion | |
Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port on Base |
