MSRP | $2,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 7.7 lbs (frame) | |
Frame | ||
| Suntour XCM | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Dorado Hydraulic Disc | ||
| Bafang hub-drive | ||
| 672Wh | ||
| X5 | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

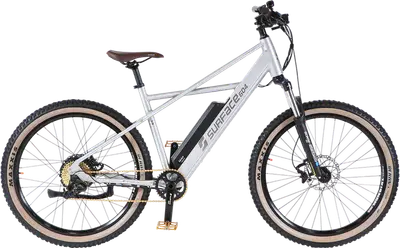

Summary | The Surface 604 Quad is a 27.5″ hardtail crosscountry e-bike with mid-range components. | |
Ask 99 Spokes
Fork | SR Suntour XCM 32 Spring Suspension, 100 mm Travel, Compression Adjust with Lockout, Preload Adjust, 100 mm Hub Spacing, 32 mm Steel Stanchions, 15 mm Thru-Axle with 6 mm Hex Bolt Travel: 100mm Spring Type: Coil | |
|---|---|---|
Headset | Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8" | |
Stem | Ergotec 6+, Aluminum Alloy, 0° Rise, 50 mm Length, Base Height, 15 mm Tapered Spacer, Two 10 mm Spacers, One 5 mm Spacer, 31.8 mm Clamp Diameter | |
Handlebar | Aluminum Alloy, 40 mm Low-Rise, 20 mm Backsweep, 720 mm Width | |
Saddle | Velo, Active, Brown | |
Seatpost | Aluminum Alloy with Forged Single-Bolt Clamp, 4 mm Hex Bolt for Seat Clamp (30.4 mm to 27.2 mm Shim and SR Suntour NCX Suspension Seatpost Shown on Demo Bike) Type: Suspension | |
Pedals | Aluminum Alloy Platform, Wide with Integrated Pins, Gold with Silver Accents (They May Switch to Black) | |
Grips | Stitched Faux Leather, Ergonomic, Black, Locking |
Rear Derailleur | 1x9 SRAM X5 or Shimano Alivio | |
|---|---|---|
Crank | Samox AF-38, Forged Alloy, 170 mm Length, Sealed Cartridge Bearings, Hollow Spindle, STYX 7075 CNC 38 Tooth Narrow-Wide Steel Chainring | |
Shifters | SRAM X5 or Shimano Alivio Triggers on Right | |
Cassette | 1ZTTO 9S 11-36 Tooth (Nickel Chrome Gold) or 12 to 34 Tooth SRAM | |
Brakes | Tektro Dorado Hydraulic Disc with 180 mm Rotors, Dual-Piston Calipers, Three-Finger Tektro Levers with Motor Inhibitors and Adjustable Reach Type: Tektro Dorado Hydraulic Disc |
Rims | 27.5 |
|---|
Motor | Type: Hub, Output: 500, Details: Bafang RM G360.500.DC, Weight: 7.7 lbs (3.49 kg) | |
|---|---|---|
Battery | Watt Hours: 672 Wh, Details: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing 48 Volt, Lithium-ion, 14 Amp Hrs, (Optional 20 ah), 7.7 lbs, Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery) | |
Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port |
Fenders | Yes | |
|---|---|---|
Racks | Yes |
