    MSRP
    Where to Buy
    $1

    At

    Category
    Crosscountry
    Frame
    Aluminum
    Fox
    Wheels
    Aluminum
    Wheel Size
    29″
    Avid Hydraulic Disc
    X0, X7
    Drivetrain
    1 × 10
    Suspension
    Hardtail
    Front Travel
    80mm
    Brand Site

    specialized.com

    Summary

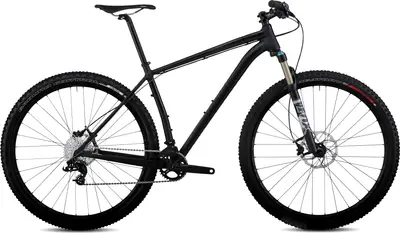

    The Specialized Stumpjumper EVO 29 is a 29″ aluminum frame hardtail crosscountry bike with ultra high-end components.

    Ask 99 Spokes

    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Stumpjumper EVO 29
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    Stumpjumper EVO 29

    Highest gear

    (descending)

    Geometry
    Specs
    Frame

    M5 fully manipulated alloy, 29"" geometry, tapered HT, PF30 BB, PM 140mm rear brake, 135mm dropouts, replaceable derailleur hanger

    BB StandardPF30, Press Fit

    Fork

    Fox Float 29 Evolution RL, air spring, tapered steerer, LO and reb adj. S: 80mm travel (straight 1-1/8"" steerer), Others: 100mm travel

    Travel80mm

    Spring TypeAir

    Bottom Bracket

    SRAM PF30, OS press-in bearing, sealed cartridge

    Headset

    1-1/8 threadless, Campy style upper with 1-1/2"" lower bearing for tapered integrated HT, cartridge bearings

    Stem

    Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 75mm, M: 90mm, L: 105mm, XL/XXL: 105mm

    Handlebar

    Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10º backsweep, 6º upsweep, 31.8mm

    Saddle

    Specialized Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm width

    Seatpost

    2014 butted alloy, single bolt setback, 27.2mm, 350mm 15.5/17.5""

    TypeRigid

    Pedals

    Resin Test Ride Pedals with toe clips, CEN std.

    Grips

    Specialized lock-on, S/M: Grappler, Others: Grappler XL

    Groupset
    Rear Derailleur

    SRAM X0, 10-speed, short cage

    Front Derailleur

    e. thirteen XCX chain guide, seat tube mounted

    Crank

    Custom SRAM S-1250, 7050 alloy arms, 33T single ring, PF30 spindle, 15.5"": 170mm, Others: 175mm

    Shifters

    SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamps

    Cassette

    SRAM PG-1030, 10-speed, 11-36t

    Chain

    KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

    Brakes

    Front: Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 180mm HS-1 rotor, Rear: Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm

    TypeAvid Hydraulic Disc

    Brake Levers

    Custom Avid Elixir R SL hydraulic, tool-less reach adj. w/MatchMaker clamps

    Wheels
    Rims

    Roval 29, 26mm w/ eyelets, 32h

    Spokes

    DT Swiss Industry 2.0, (14g) stainless

    Front Hub

    Specialized Hi Lo disc, laser-etched logo, OS 24 end caps, sealed cartridge bearing, RWS, 32h

    Rear Hub

    Specialized Hi Lo disc, laser-etched logo, double-sealed cartridge bearing, QR, 32h

    Tires

    Front: S-Works Purgatory, 120 TPI, 2Bliss ready aramid bead, dual-compound, 29x2.2"", Rear: Specialized Ground Control, 2Bliss ready aramid bead, 29x2.1""
