MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Fat | |
Frame | Aluminum | |
| RockShox Bluto RL | ||
Wheels | Aluminum | |
Wheel Size | 26″ | |
| Tektro Gemini Hydraulic Disc | ||
| X7 | ||
Drivetrain | 1 × 10 | |
Brand Site | ||

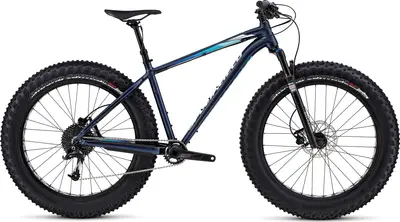

Summary | The Specialized Fatboy Trail is a 26″ aluminum frame hardtail fat bike with upper mid-range components. | |
Ask 99 Spokes
Frame | Specialized M4 aluminum, fully-butted tubing w/ smooth welds, tapered head tube, post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger BB Standard: PF30, Press Fit | |
|---|---|---|
Fork | RockShox Bluto RL, Solo Air spring, Motion Control damping, external rebound adjust, mag lowers, tapered alloy steerer, 32mm alloy stanchions, disc mount, QR 15mm thru-axle for 150mm hub spacing Spring Type: Air | |
Bottom Bracket | Samox, PF30, sealed cartridge | |
Headset | 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings | |
Stem | Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware | |
Handlebar | Specialized Stout XC, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm | |
Saddle | Body Geometry Henge Sport, steel rails, 143mm | |
Seatpost | TranzX YSP02 dropper, infinite adjust, external cable routing, remote lever, 30.9mm, S: 100mm travel, M/L/XL: 120mm travel Type: Dropper | |
Pedals | Nylon, 1 pc. body, 9/16"", w/ reflectors | |
Grips | Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness |
Rear Derailleur | SRAM X7 Type 2.1, 10-speed, long cage | |
|---|---|---|
Crank | Specialized Stout XC Pro, forged alloy, 30mm alloy spindle, 100mm spindle width, 28T, 76mm BCD spider | |
Shifters | SRAM X7, 10-speed, trigger | |
Cassette | Custom Sunrace, wide range, 10-speed, 11-40t | |
Chain | KMC X10L, 10-speed, w/ reusable MissingLink | |
Brakes | Front: Tektro Gemini, hydraulic disc, resin pads, I-spec compatible, Rear: Tektro Gemini, hydraulic disc, resin pads, I-spec compatible Type: Tektro Gemini Hydraulic Disc | |
Brake Levers | Tektro Gemini, hydraulic, reach adjust, I-spec compatible |
Rims | Specialized Stout XC 90, disc, alloy, single wall, 90mm wide, sleeve joint, hookless design, 32h | |
|---|---|---|
Spokes | Stainless, 14g, black | |
Front Hub | Specialized Stout XC 150, Hi Hi disc, double-sealed cartridge bearings, 15mm thru-axle, 32h | |
Rear Hub | Specialized Stout XC 190, Hi Hi disc, alloy, sealed cartridge bearings, QR, 32h | |
Tires | Front: Specialized Ground Control Fat, 120TPI, folding bead, 26x4.6"", Rear: Specialized Ground Control Fat, 120TPI, folding bead, 26x4.6"" |
