 | Recommended |
|---|
MSRP | $1,400 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Fat | |
| Aluminum | ||
Fork | Aluminum | |
Wheels | Aluminum | |
Wheel Size | 26″ | |
Brakes | Mechanical Disc | |
Groupset | GX, X7 | |
Drivetrain | 1 × 10 | |
Brand Site | ||

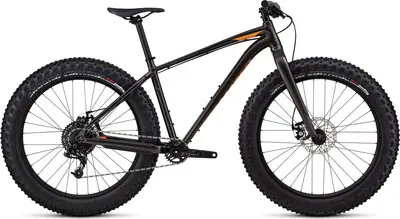

Summary | The Specialized Fatboy SE is a 26″ aluminum frame rigid fat bike with high-end components and mechanical disc brakes. | |
Based on frame geometry and build specs.
Frame | Specialized M4 Aluminum, fully butted tubing w/Smooth Welds, tapered head tube, post mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger BB Standard: PF30, 100mm, Press Fit | |
|---|---|---|
Fork | Specialized, alloy, air-formed legs, tapered alloy steerer, 135mm hub spacing, open quick-release dropouts | |
Bottom Bracket | PF30 BB, 100mm | |
Stem | Ahead 3D-forged alloy, 31.8mm clamp, 6-degree rise | |
Handlebar | Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm | |
Saddle | Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm | |
Seatpost | Alloy, 12mm offset, 2-bolt clamp, 30.9mm | |
Pedals | Specialized Platform, Cr-Mo, 9/16" spindle | |
Grips | Specialized MTB Grip, lock-on |
Rear Derailleur | SRAM GX, Type 2.1, long cage, 10-speed | |
|---|---|---|
Crank | Stout direct mount, PF30, 28t, 28T, steel | |
Shifters | SRAM X7, trigger | |
Cassette | Sunrace, 10-speed, 11-42t | |
Chain | KMC X10, 10-speed w/ Missing Link™ | |
Brakes | Front: Tektro Aries, mechanical disc, organic pad, 203/180mm rotor, Rear: Tektro Aries, mechanical disc, organic pad, 180/160mm rotor |
Rims | Stout XC 80, 26", 76mm internal width, 32h, tubeless ready | |
|---|---|---|
Spokes | Stainless, 14g | |
Front Hub | Stout 135, loose ball bearings, 10x135 QR, 32h | |
Rear Hub | Stout 190, sealed cartridge bearings, 10x190mm QR, 32h | |
Tires | Front: Ground Control Fat, 60 TPI, wire bead, 26x4.6", Rear: Ground Control Fat, 60 TPI, wire bead, 24x4.6" |
