 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Dirt Jump | |
Weight | 28.7 lbs | |
| Aluminum | ||
Fork | RST DIRT | |
Wheels | Aluminum | |
Wheel Size | 26″ | |
Brakes | Hydraulic Disc | |
Groupset | ||
Drivetrain | Single-speed | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

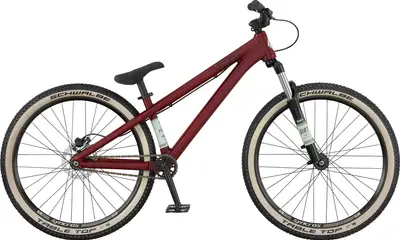

Summary | The Scott Voltage YZ 0.2 is a 26″ aluminum frame hardtail dirt jump bike with mid-range components. | |
Frame | Voltage A-Frame 26 Hydroformed tubing Super Stiff 6061 Alloy frame Disc Dropout, horizontal for 135x10mm singlespeed BB Standard: BB86/BB92, Press Fit | |
|---|---|---|
Fork | RST Dirt 100mm travel / firm spring DJ setup | |
Bottom Bracket | Jien-Yuan BB92 / 19mm Axle | |
Headset | GW 1SI11015Z30 Integ. | |
Stem | Lee-Chi MA-50 1 1/8" / 10° / 40mm | |
Handlebar | Syncros DJ2.0 / 31.8mm 750mm / 50mm Rise | |
Saddle | Syncros Pivotal VL-7121 | |
Seatpost | Syncros Pivotal / 31.6mm | |
Pedals | Wellgo B107.N flat |
Rear Derailleur | Singlespeed | |
|---|---|---|
Crank | SCOTT Cr-Mo 3-piece cranks 170mm / 25T Alloy BMX sprocket | |
Cassette | Sprocket / 12T | |
Chain | KMC Z510 | |
Brakes | Tektro SCH-F15 Hydraulic Disc / 160mm Rotor | |
Brake Levers | Tektro |
Rims | Syncros MD25 Disc / 32H | |
|---|---|---|
Spokes | Stainless 14G / black / 2.0mm | |
Front Hub | Formula DC-20-N / nutted | |
Rear Hub | Formula DC42-N w/tracknut / singlespeed | |
Tires | Schwalbe Table Top Performance 67EPI / wire / 26x2.25 Skinwall |
