    Voltage JR 262017 Scott
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Mountain Youth
    Weight
    		29.8 lbs
    1.7
    Frame
    		Aluminum
    		Zoom
    Wheels
    		Aluminum
    Wheel Size
    		26″
    		Promax Rim
    		Tourney
    Drivetrain
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    scott-sports.com

    Summary

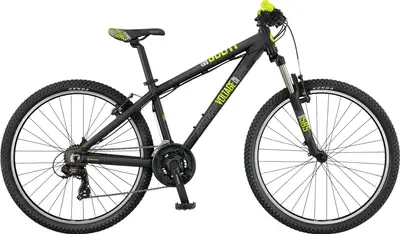

    		The Scott Voltage JR 26 is a 26″ aluminum frame mountain youth bike with mid-range components and promax rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    23 mph

    Voltage JR 26

    Highest gear

    (descending)

    Geometry
    Specs
    Voltage JR 262017 Scott
    Frame

    Voltage C-frame 26 Hydroformed tubing / new SST Super Stiff 6061 Alloy frame Size: S

    Fork

    Zoom 565 100mm travel

    Travel: 100mm

    Bottom Bracket

    Shimano BB-UN-100

    Headset

    GW 1SI110

    Stem

    JD-ST161A 1 1/8" / +/-7°

    Handlebar

    JD-MTB499A / Alloy 660mm / 12mm uprise

    Saddle

    Voltage DJ VL-7104

    Seatpost

    HL SP-C212 Alloy / 31.6

    Type: Rigid

    Pedals

    Wellgo LU-895DU

    Groupset
    Rear Derailleur

    Shimano RD-TY300 / 21 Speed

    Front Derailleur

    Shimano FD-TY500 / 34.9mm

    Crank

    Shimano FC-TY301 42x34x24 w/CG

    Shifters

    Shimano ST-EF 41 L / 7R / EZ-fire plus

    Cassette

    Shimano MF-TZ 21-7 14-28T

    Chain

    KMC Z-50

    Brakes

    Promax TX-107L V-Brake

    Type: Promax Rim

    Brake Levers

    incl.

    Wheels
    Rims

    Syncros X-18 / 32H / black

    Spokes

    HTI STD Spoke 14C / black / 2.0mm

    Front Hub

    Formula FM-21-FQR

    Rear Hub

    Formula FM-31-RQR

    Tires

    Kenda K-905 26x2.125 / 22 TPI
