Bike Comparison
    Voltage JR 202017 Scott
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Mountain Youth
    Weight
    		25.6 lbs
    2.3
    Frame
    		Aluminum
    Fork
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		20″
    Brakes
    		Rim
    Motor
    Battery
    Groupset
    		Tourney
    Drivetrain
    		1 × 7
    Suspension
    		Hardtail
    Front Travel
    		40mm
    Brand Site

    scott-sports.com

    Summary

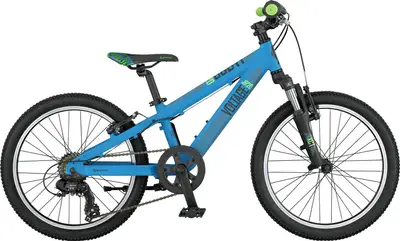

    		The Scott Voltage JR 20 is a 20″ aluminum frame mountain youth bike with mid-range components and rim brakes.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    15 mph

    Voltage JR 20

    Highest gear

    (descending)

    Geometry
    Specs
    Voltage JR 202017 Scott
    Frame

    SCOTT Junior 20 Voltage / Octagon tubing / Alloy 6061 P.G.

    Fork

    SR Suntour XCT-JR Suspension fork / 40mm Softer spring setup

    Bottom Bracket

    NECO B906BK

    Headset

    NECO H852EDIM

    Stem

    LEADTEC LCS-7126 50mm

    Handlebar

    Junior Riser bar 540mm

    Saddle

    VC-SCT-22

    Seatpost

    Alloy 26.8x200mm

    Pedals

    MARWI SP-700

    Groupset
    Rear Derailleur

    Shimano RD-TY300 7 Speed

    Crank

    Prowheel A105PP 36T 140mm

    Shifters

    Shimano SL-RS36-7 Revo Shifter

    Cassette

    Shimano MF-TZ21 14-28T

    Chain

    KMC Z-51

    Brakes

    Promax SCB 209 P Kids specific

    Brake Levers

    Tektro JL-510 TS

    Wheels
    Rims

    Alex C-1000

    Spokes

    15G UCP / black

    Front Hub

    KT-122F / Nutted

    Rear Hub

    KT-122R / Nutted

    Tires

    K1166 / 20x1.95 / 22TPI
