    Voltage 9202026 Scott
    Recommended
    MSRP
    $5,849$6,499
    Where to Buy
    $5,849

    10% off At Scott

    $5,849

    10% off At Backcountry

    See more

    Category
    		Enduro, E-Bike
    Weight
    		2.4 lbs (frame)
    6.6
    Frame
    		Carbon
    		Marzocchi Bomber Z2
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM Hydraulic Disc
    		TQ 60Nm mid-drive
    		TQ 360Wh
    		Eagle 70 Transmission
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		155mm
    Brand Site

    scott-sports.com

    Summary

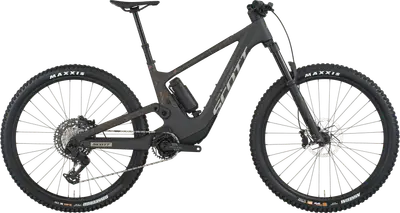

    		The Scott Voltage 920 is a 29″ carbon frame full suspension enduro e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Voltage 920
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    Voltage 920

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Voltage 9202026 Scott
    Frame

    Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle,Syncros Cable Integration System, TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline

    Hanger Standard: UDH

    Color: Carbon Black / Crackle Bronze

    Fork

    Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer; 44mm offset, Reb. Adj. Lockout, 150mm travel

    Travel: 150mm

    Spring Type: Air

    Shock

    X-Fusion NUDE 5 RLX Trunnion; SCOTT custom w. travel, geo adj.; 3 modes: Lockout-Traction Control-Descend; Reb. Adj.; Travel 155-100-Lockout, T185X55mm

    Travel: 155mm

    Headset

    Syncros - Acros Angle adjust & Cable Routing HS System; Stainless, +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB

    Stem

    Syncros AM 2.0; Syncros Cable Integration System; 4° rise, 6061 Alloy, 31.8mm, 1 1/8"

    Handlebar

    Syncros Hixon 2.0 Alloy 6061; Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm; Syncros Endurance lock-on grips

    Saddle

    Syncros Tofino 2.0 Regular

    Seatpost

    Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm; S size 140mm, M size 180mm, L size 180mm, XL size 210mm

    Type: Dropper

    Groupset
    Rear Derailleur

    SRAM Eagle 70 Transmission 12 Speed

    Crank

    Praxis Alloy

    Shifters

    SRAM Eagle 70 Shifter

    Cassette

    SRAM Eagle XS 1270 Transmission 10-52

    Chain

    SRAM CN Eagle 70 Transmission

    Chain Guide

    e*thirteen, e*spec Slider

    Brakes

    SRAM DB4 Stealth 4-Piston Disc

    Type: SRAM Hydraulic Disc

    Wheels
    Rims

    Syncros X-30S, 32H, 30mm, Sleeve Joint; Tubeless ready

    Spokes

    Stainless Black 15G, 1.8mm

    Front Hub

    Formula CL-811, 15x110mm

    Rear Hub

    Formula CL-148S, 12x148mm

    Tires

    Front: Maxxis Assegai, 2.5", 60TPI Foldable; Tubeless Ready, EXO+ 3C Maxx Terra, Rear: Maxxis Dissector, 2.5", 60TPI Foldable; Tubeless Ready, EXO+ 3C Maxx Terra

    Disc Rotors

    SRAM HS2 Rotors F&R 200mm

    Electric Components
    Motor

    TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

    Battery

    TQ Internal 360Wh + TQ Range Extender 160Wh

    Display

    TQ HPR; Bluetooth, ANT+, Dedicated Smartphone app

    Charger

    TQ 100-240V-4A
