Bike Comparison
    Spark eRide 9202020 Scott
    Recommended
    MSRP
    $5,499
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    5.7
    Frame
    		Aluminum
    Fork
    		Fox Rhythm Float 34
    Shock
    		Fox Float DPS Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″
    Brakes
    		Hydraulic Disc
    Motor
    		Shimano 250W 70Nm mid-drive
    Battery
    		Shimano 500Wh
    Groupset
    		NX Eagle, Shimano
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		120mm
    Brand Site

    scott-sports.com

    Summary

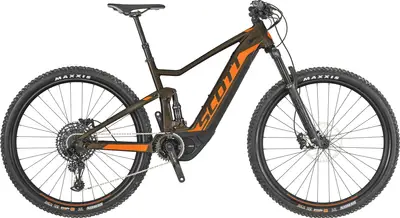

    		The Scott Spark eRide 920 is a 29″ aluminum frame full suspension trail e-bike with high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Spark eRide 920
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    Spark eRide 920

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Spark eRide 9202020 Scott
    Frame

    Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 120mm travel / Shimano E-8000 Int. DT Battery Tapered Headtube E2, Central Kickstand Mount

    BB Standard: STEPS, Press Fit

    Fork

    FOX 34 Rhythm Air Grip 3 / 3-Modes / 15x110mm QR axle tapered steerer / Reb. Adj. / Lockout / 130mm travel / E-Bike

    Shock

    FOX Float EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 130mm / 165x45mm

    Bottom Bracket

    STEPS, press-fit

    Headset

    Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm

    Stem

    Syncros FL2.0 / 6061 Alloy integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"

    Handlebar

    Syncros FL2.0 Steps mini Riser / Alloy 6061D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips

    Saddle

    Syncros XM2.5

    Seatpost

    Syncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 125mm

    Groupset
    Rear Derailleur

    SRAM NX Eagle / 12 Speed

    Crank

    Shimano STEPS FC-M8050 / 165mm / 34T

    Shifters

    SRAM NX Eagle Single Click

    Cassette

    SRAM PG1230 / 11-50 T

    Chain

    SRAM NX Eagle

    Chain Guide

    SCOTT custom

    Brakes

    Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor

    Brake Levers

    Shimano BL-MT501

    Wheels
    Rims

    Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready

    Spokes

    Stainless Black

    Front Hub

    Shimano HB-MT400-B CL / 15x110mm

    Rear Hub

    Shimano FH-MT400-B CL / Boost 12x148mm

    Tires

    Front & Rear: Maxxis Rekon / 29x2.6" / 120TPI Kevlar Bead EXO + SilkShield / TR Tubeless ready 3C Maxx Terra

    Electric Components
    Motor

    Shimano STEPS E8000 250W w/integr. 500Wh Battery / SC-E8000 Display Shimano 4A Charger EU: 25kmh / US: 20mph

    Battery

    Shimano STEPS E8000 250W w/integr. 500Wh Battery / SC-E8000 Display Shimano 4A Charger EU: 25kmh / US: 20mph
