MSRP | $549 | |
---|---|---|
Where to Buy | — $1 At | $549 At Trek |
Category | General Youth | General Youth |
Weight | 22.9 lbs | 21.1 lbs |
Aluminum | Aluminum | |
Fork | Aluminum | Aluminum |
Wheels | Aluminum | Aluminum |
Wheel Size | 20″ | 24″ |
Brakes | Mechanical Disc | Rim |
Groupset | Tourney | microSHIFT Acolyte |
Drivetrain | 1 × 7 | 1 × 8 |
Brand Site | ||

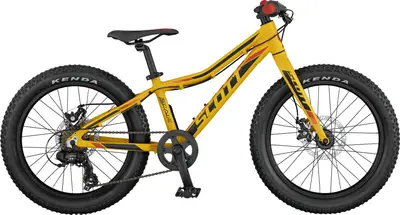

Summary | The Scott Scale JR 20 Plus is a 20″ aluminum frame general youth bike with mid-range components and mechanical disc brakes. |
Frame | SCOTT Racing 20 Junior Plus Alloy 6061 P.G. Pressed dropouts | Alpha Silver Aluminum, 24'' |
---|---|---|
Fork | AL-6061 rigid fork / disc | Wahoo 24'' alloy, V-brake bosses, ThruSkew 5mm QR |
Bottom Bracket | NECO B906BK | Sealed cartridge, 68mm |
Headset | GW 1SI110T043001 | Integrated, sealed cartridge bearings |
Stem | LEADTEC LCS-7126 50mm | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Handlebar | Junior Flat-Bar / Alloy 540mm | Bontrager alloy, 31.8mm, 15mm rise, 580mm width |
Saddle | Syncros JR2.5 | Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm |
Seatpost | Alloy 26.8x200mm | |
Pedals | MARWI SP-700 | Kids' Satellite, 9/16 thread |
Grips | Size: 24" wheel, Kids' grip, 108mm width, lock-on; Size: 24" wheel, Kids' grip, 110mm width; Size: 24" wheel, Kids' grip, 108mm width |
Rear Derailleur | Shimano RD-TY300 7 Speed | microSHIFT Acolyte M5180S, 34-38T max cog |
---|---|---|
Crank | Prowheel A105PP 36T 140mm | Alloy, 28T steel ring, chainguard, 127mm length |
Shifters | Shimano SL-RS36-7 Revo Shifter | microSHIFT Acolyte SL-M6285, 8 speed |
Cassette | Shimano MF-TZ21 14-28T | microSHIFT Acolyte H083, 11-38, 8 speed |
Chain | KMC Z-51 | KMC Z8 |
Brakes | Tektro SCM-02 Mech. Disc Brake / 160mm Rotor | Alloy linear-pull |
Brake Levers | LEE CHI BL-81G | Kids' alloy brake lever, black |
Rims | Shining MP-32 | Alloy 24'', 28h |
---|---|---|
Spokes | 15G UCP / black | |
Front Hub | KT-122F / Nutted | Formula alloy, 100mm ThruSkew |
Rear Hub | KT-122R / Nutted | Formula FM32 alloy, 135x5mm |
Tires | K1080 / 20x2.6 / 30TPI | Bontrager Connection Comp, wire bead, 30 tpi, 24x2.00'' |
