MSRP | $3,299 | $10,199 |
---|---|---|
Where to Buy | — $1 At | $10,199 At Trek |
Category | Triathlon | Triathlon |
Weight | 20.8 lbs | 20.2 lbs |
Carbon | Carbon | |
Fork | Carbon | Carbon |
Wheels | Aluminum | Carbon |
Wheel Size | 700c | 700c |
Clearance | 28c | |
Brakes | Rim | Hydraulic Disc |
Groupset | Ultegra, Dura-Ace | Force eTap, RED AXS |
Drivetrain | 2 × 11 | 2 × 12 Electronic |
Power Meter | None | Force AXS |
Brand Site | ||

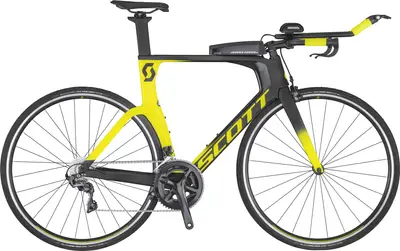

Summary | The Scott Plasma 10 is a carbon frame triathlon bike with high-end components and rim brakes. |
Frame | Plasma 4 / IMP technology / HMF TT / TRI Geometry / Plasma HMX seatpost / Replaceable Derailleur Hanger / UCI approved BB Standard: BB86/BB92, Press Fit | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage BB Standard: BB86/BB92, Press Fit |
---|---|---|
Fork | Plasma 4 1 1/8" Carbon / integrated | SC full foil carbon, integrated brake & stem |
Bottom Bracket | Shimano BB-RS500-PB | SRAM DUB, T47 threaded, internal bearing |
Headset | Syncros Integrated 45mm drop-in headset | |
Stem | Profile 1/ZeroSeven 1 1/8"-31.8mm-7° | |
Handlebar | Profile Wing 10a / Sonic Ergo 35 | |
Saddle | Syncros Belcarra 2.0 TRI | Bontrager Hilo Comp, hollow chromoly rails |
Seatpost | Plasma HMX with Ritchey WCS clamp adjustable head | Size: S, Speed Concept SLR, 11.5mm or -20mm offset, short length; Size: M, L, XL, Speed Concept SLR, 11.5mm or -20mm offset, tall length |
Rear Derailleur | Shimano Ultegra RD-R8000 22 Speed | SRAM Force AXS D2, 36T max cog |
---|---|---|
Front Derailleur | Shimano Ultegra FD-R7000 | SRAM Force AXS D2, braze-on |
Crank | Shimano FC-RS510 36/52 T | Size: S, SRAM Force AXS D2, power meter, 48/35, DUB, 170mm length; Size: M, L, SRAM Force AXS D2, power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM Force AXS D2, power meter, 48/35, DUB, 175mm length |
Power Meter | Size: S, SRAM Force AXS D2, power meter, 48/35, DUB, 170mm length; Size: M, L, SRAM Force AXS D2, power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM Force AXS D2, power meter, 48/35, DUB, 175mm length | |
Shifters | Shimano Dura Ace SL-BSR1 bar end | Size: S, M, L, XL, SRAM eTap AXS Wireless Blips, basebar-mounted; Size: S, M, L, XL, SRAM eTap AXS BlipBox; Size: S, M, L, XL, SRAM eTap Clics, extension-mounted |
Cassette | Shimano CS-R7000 11-28 | SRAM Force XG-1270, 10-33, 12 speed |
Chain | Shimano CN-HG601-11 | SRAM Force, 12 speed |
Brakes | Front: Shimano 105 BR-R7010F Rear: Shimano 105 BR-R7010R, direct mount | Hydraulic Disc |
Brake Levers | Profile Design 3 / one A | SRAM S-900 Aero |
Rims | Syncros Race 23 24 Front / 28 Rear | Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle |
---|---|---|
Spokes | SHA-DAR Black 2mm | |
Front Hub | Formula RB 25 | |
Rear Hub | Formula RB 2611 | |
Tires | Schwalbe ONE Race-Guard Fold 700x25C | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm |
Disc Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
