    Passage 302026 Scott
    Recommended
    MSRP
    ($3,863)($4,292)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		48.1 lbs
    4.4
    Frame
    		Aluminum
    		Suntour NRX
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 55Nm mid-drive
    		400Wh
    		CUES
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		75mm
    Brand Site

    scott-sports.com

    Summary

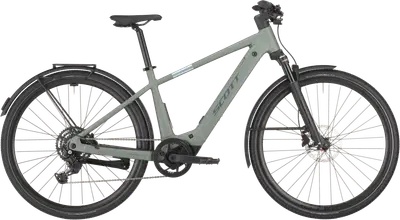

    		The Scott Passage 30 is a 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Passage 30
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Passage 30

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Passage 302026 Scott
    Frame

    Alloy S-XL=29" / 6061 Alloy custom butted tubing; Top extraction battery

    Color: Highland Green

    Fork

    SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Steel Steerer / 75mm Travel

    Travel: 75mm

    Spring Type: Air

    Headset

    Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm

    Handlebar

    Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount

    Saddle

    Syncros Capilano

    Seatpost

    Syncros M3.0 / 31.6

    Type: Rigid

    Pedals

    Marwi SP-827

    Groupset
    Rear Derailleur

    Shimano CUES RDU4000GS 9 Speed

    Crank

    FSA CK-220 170mm

    Shifters

    Shimano CUES SLU4009RC / 9 Speed

    Cassette

    Shimano LG300 / 11-46T

    Chain

    Shimano LG500

    Chain Guide

    Syncros

    Brakes

    Shimano BR-MT200 Disc

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Syncros X15 Disc

    Spokes

    Black Spokes

    Front Hub

    Shimano HBTC50015B CL / 15x100mm

    Rear Hub

    Shimano FHTC500HMB CL / 12x142mm

    Tires

    Front: Schwalbe G-One Overland 365 Performance; 700x45C, Rear: Schwalbe G-One Overland 365 Performance; 700x45C

    Disc Rotors

    Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm

    Electric Components
    Motor

    Bosch Performance SX; EU: 25kmh

    Battery

    Compact Tube 400Wh

    Display

    Bosch Purion 200

    Charger

    2A Charger

    Accessories
    Lights

    Lezyne Fusion E550SM front light; Rear Supernova TL3Z

    Racks

    Racktime Micro Rack SnapIt 2.0 8KG
