Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison
    Lumen 9052026 Scott
    Recommended
    MSRP
    $7,499
    Where to Buy
    $5,999

    At Contender

    Category
    		Trail, E-Bike
    Weight
    		39.5 lbs
    7.6
    Frame
    		Carbon
    		Fox Rhythm Float 34
    		Fox
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		TQ 50Nm mid-drive
    		TQ 360Wh
    		Eagle AXS, S1000 Eagle Transmission
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		130mm
    Brand Site

    scott-sports.com

    Summary

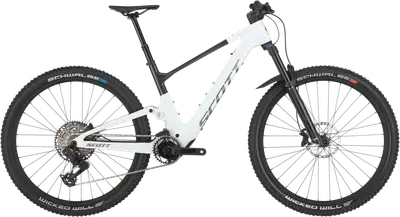

    		The Scott Lumen 905 is a 29″ carbon frame full suspension trail e-bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Lumen 905
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    Lumen 905

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Lumen 9052026 Scott
    Frame

    Carbon HMX; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

    Hanger Standard: UDH

    Color: Cumulus White / Carbon Black

    Fork

    FOX 34 Float Rhythm Air Grip; 3-Modes / Kabolt 15x110mm axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 140mm travel

    Travel: 140mm

    Spring Type: Air

    Shock

    FOX NUDE 6T EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. / Custom large Air volume / Reb. Adj.; Bearing Hardware / Travel 130-90-Lockout / T165X45mm

    Travel: 130mm

    Headset

    Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB

    Stem

    Syncros DC 2.0; Syncros Cable Integration System; 0° rise / 6061 Alloy / 31.8mm / 1 1/8"

    Handlebar

    Syncros Fraser 2.0 DC Alloy 6061 D.B.; mini Rise / back sweep 8° / 760mm; Syncros Performance XC lock-on grips

    Saddle

    Syncros Tofino 2.0 Regular; CRMO rails

    Seatpost

    Syncros Duncan Dropper Post 2.0; 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

    Type: Dropper

    Groupset
    Rear Derailleur

    SRAM S1000 Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System

    Crank

    FSA Alloy

    Shifters

    SRAM AXS Pod Controller

    Cassette

    SRAM Eagle XS 1270 Transmission 10-52

    Chain

    SRAM CN GX Eagle Transmission

    Chain Guide

    e*thirteen / e*spec Slider

    Brakes

    Shimano Deore M6120 4 Piston Disc

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    Syncros X-30S / 32H / 30mm; Tubeless ready

    Spokes

    Stainless Black 15G / 1.8mm

    Front Hub

    Formula CL-811 / 15x110mm

    Rear Hub

    Formula CL-148S / 12x148mm

    Tires

    Front: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Grip

    Disc Rotors

    Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm

    Electric Components
    Motor

    TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

    Battery

    TQ Internal 360Wh

    Display

    TQ HPR; Bluetooth / ANT+ / Dedicated Smartphone app

    Charger

    TQ 100-240V-4A
