    Axis eRIDE FS 202024 Scott
    Recommended
    MSRP
    ($7,275)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		58.6 lbs
    Frame
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		625Wh
    		XT, Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		130mm
    Brand Site

    scott-sports.com

    Summary

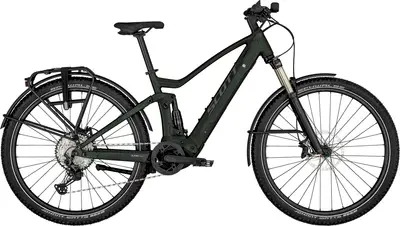

    		The Scott Axis eRIDE FS 20 is a 29″ hybrid e-bike with high-end components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    Axis eRIDE FS 20

    Highest gear

    (descending)

    Geometry
    Specs
    Axis eRIDE FS 202024 Scott
    Frame

    Virtual 4 link kinematic VLK; 29" / Boost 148x12mm; 130mm travel / Bosch Integrated Battery; Range Booster Ready

    BB Standard: Bosch, Press Fit

    Fork

    Suntour XCR34 / Tapered / S-XL 29" / 130mm Travel / Maxle Lite / Remote Lock Out

    Travel: 130mm

    Shock

    X-Fusion NUDE Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control -Descend; Reb. Adj.; Travel 130-85-Lockout / 185X50mm

    Travel: 130mm

    Bottom Bracket

    Bosch, press-fit

    Headset

    Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8"; OD 50/62mm / ID 44/56mm

    Stem

    Syncros FL3.0 with front Light mount and Kiox mount

    Handlebar

    Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise; Syncros Lock On Grip

    Saddle

    Syncros Capilano

    Seatpost

    Syncros FL3.0 / 31.6

    Type: Rigid

    Pedals

    VP VPE-506

    Groupset
    Rear Derailleur

    Shimano RD M8100SGS / 12 Speed

    Front Derailleur

    SCOTT Chainguide

    Crank

    FSA CK-745 IS GEN4 MTB 170mm

    Shifters

    Shimano Deore Trigger SL-M6100RA

    Cassette

    Shimano CS-M7100-12 10-51T 12S

    Chain

    KMC E12S

    Brakes

    Shimano BR-MT520 4 Piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Syncros MAXX Disc / 32H; Tubeless ready

    Spokes

    Sapim double butted

    Front Hub

    Formula CL-811 / 15x110mm

    Rear Hub

    Formula MSC-148S / Boost 12x148mm

    Tires

    Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired

    Disc Rotors

    203/F SM-RT64 CL and 203/R RT-EM600 CL rotor

    Electric Components
    Motor

    Bosch Performance CX BES2

    Battery

    PowerTube 625Wh

    Remote

    SCOTT TwinLoc Remote

    Display

    Kiox Display

    Charger

    4A Charger

    Accessories
    Lights

    Supernova integrated M99 mini Pure-25 / 600 Lumen front light; Rear Supernova Taillight

    Racks

    Axis EVO by Racktime SnapIt 2.0 15KG
