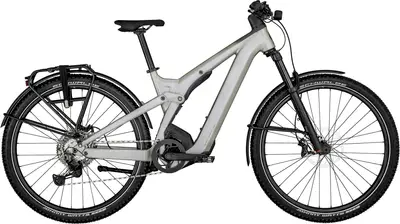

    Axis eRIDE FS 102023 Scott
    Recommended
    MSRP
    ($8,466)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		61.7 lbs
    8.5
    Frame
    		Aluminum
    		Fox AWL
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		750Wh
    		XT
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		140mm
    Brand Site

    scott-sports.com

    Summary
    		The Scott Axis eRIDE FS 10 is a 29″ aluminum frame hybrid e-bike with high-end components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Axis eRIDE FS 10

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Axis eRIDE FS 102023 Scott
    Frame

    Alloy S-XL=29" / Virtual 4 link kinematic VLK; 29" / Boost 148x12mm; 140mm travel / Bosch 750Wh Integrated Battery; internal cable routing

    BB Standard: Bosch, Press Fit

    Fork

    FOX AWL / Tapered / S-XL 29" / 140mm Travel / Stealth / Remote Lock Out

    Travel: 140mm

    Spring Type: Air

    Shock

    FOX Float eRIDE Trunnion 205x55mm

    Travel: 140mm

    Bottom Bracket

    Bosch, press-fit

    Headset

    Acros / 1.8"; ZS66 OD74 / integr. Cable

    Stem

    Syncros FL3.0 with front Light mount and Kiox 300 mount

    Handlebar

    Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise; Syncros Lock On Grip

    Saddle

    Syncros Capilano

    Seatpost

    Syncros FL3.0 / 31.6

    Type: Rigid

    Pedals

    VP VPE-506

    Groupset
    Rear Derailleur

    Shimano RD M8130SGS Linkgilde / 11 Speed

    Front Derailleur

    SCOTT Chainguide

    Crank

    FSA CK-745 IS GEN4 MTB 170mm

    Shifters

    Shimano XT RD M8130SGS Linkgilde / 11 Speed

    Cassette

    Shimano CS-LG600-11 11-50T 11S

    Chain

    KMC E11S

    Brakes

    Shimano BR-MT520 4 Piston Disc Brakes

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready

    Spokes

    Sapim double butted

    Front Hub

    Formula CL-811 / 15x110mm

    Rear Hub

    Formula MSC-148S / Boost 12x148mm

    Tires

    Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired

    Disc Rotors

    203/F SM-RT64 CL and 203/R RT-EM600 CL rotor

    Electric Components
    Motor

    Bosch Performance CX; EU: 25kmh

    Battery

    PowerTube 750Wh

    Remote

    SCOTT TwinLoc Remote

    Display

    Bosch LED Remote & Kiox 300

    Charger

    4A Charger

    Accessories
    Lights

    Supernova integrated M99 mini Pure-25 / 600 Lumen front light; Rear Supernova Taillight

    Racks

    Axis EVO by Racktime SnapIt 2.0 15KG
