MSRP | $3,499 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid, E-Bike | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| TRP Mechanical Disc | ||
| Bosch 250W 63Nm mid-drive | ||
| Apex | ||
Drivetrain | 1 × 11 | |
Brand Site | ||

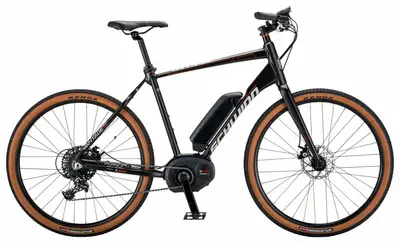

Summary | The Schwinn Vantage Fxe is a 650b aluminum frame hybrid e-bike with mid-range components and trp mechanical disc brakes. | |
Ask 99 Spokes
Frame | 6061 aluminum, 700c adventure geometry, flat mount disc, S.R.T. (Smooth Ride Technology) Elastomer, 12 mm x 148 mm dropout, replaceable hanger, integrated headset | |
|---|---|---|
Fork | 700c, aluminum steerer, 15 mm x 100 mm Thru Axle, thru axle | |
Headset | Threadless sealed, sealed bearing | |
Stem | Schwinn, aluminum, threadless front load, 10° rise, 31.8 mm clamp | |
Handlebar | Schwinn, aluminum, 660 mm width, 20 mm rise, 31.8 mm clamp | |
Saddle | Schwinn, steel rails | |
Seatpost | Aluminum, 300 mm, 20 mm offset, 27.2 mm Type: Rigid | |
Pedals | Aluminum | |
Grips | Schwinn, lock-on |
Rear Derailleur | SRAM APEX | |
|---|---|---|
Crank | FSA | |
Shifters | SRAM S700 Tigger, 11 | |
Chain | KMC X11-1 EPT | |
Brakes | TRP, mechanical disc, aluminum, 160 mm rotor Type: TRP Mechanical Disc |
Rims | Aluminum, double wall, 35 mm ID, 32H, tubeless ready | |
|---|---|---|
Spokes | Double-butted, stainless steel | |
Front Hub | Formula DC711, aluminum, sealed-bearing, 15 mm x 110 mm thru axle, 32H, 6-bolt | |
Rear Hub | Formula, aluminum, sealed-bearing, 12 mm x 142 mm, 32H, 6-bolt | |
Tires | Kenda, 650c x 47c, wire bead |
Motor | Bosch Performance Line Cruise 250w motor gets you where you need to be in comfort |
|---|
