    Hannah2025 Schindelhauer
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		52.2 lbs
    7.0
    Frame
    		Aluminum
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Formula Cura Hydraulic Disc
    		Bosch 250W 50Nm mid-drive
    		Bosch 500Wh
    		Alfine
    Drivetrain
    		Internally Geared Hub
    Brand Site

    schindelhauerbikes.com

    Summary

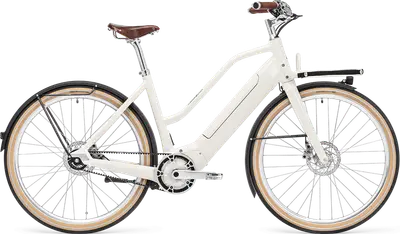

    		The Schindelhauer Hannah is a 650b aluminum frame women’s commuter e-bike with mid-range components and formula cura hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Geometry
    Specs
    Hannah2025 Schindelhauer
    Frame

    Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded

    Colors: Graphite Black; Cream White

    Fork

    Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

    Bottom Bracket

    -

    Headset

    Tange Seiki - integrated, 1 1/8-1.5

    Stem

    Satori - Stealth, aluminium

    Handlebar

    Satori - Noirette, aluminium

    Saddle

    Brooks - B17 S lady

    Seatpost

    Schindelhauer

    Type: Rigid

    Pedals

    Schindelhauer - Urban Pedal, aluminium, CNC machined

    Grips

    Schindelhauer - ergo leather grips

    Groupset
    Crank

    Miranda - Delta

    Shifters

    Shimano - Alfine 8-speed internal gear hub

    Brakes

    Formula - CURA disc brakes (hydraulic), 160 mm

    Type: Formula Cura Hydraulic Disc

    Wheels
    Rims

    Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced

    Tires

    WTB - Horizon 47-584, with reflex stripes

    Electric Components
    Motor

    Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h

    Battery

    Bosch - Powertube 500, intube battery, energy: 500 Wh

    Display

    Bosch - Purion

    Accessories
    Fenders

    Alumee - W52 Schindelhauer custom

    Racks

    Schindelhauer - aluminium, frame mounted, with VarioStrap system, ready for Ortlieb Rack-Lock, rear mudguard with integrated luggage stays
