    Hannah2023 Schindelhauer
    Recommended
    MSRP
    ($5,152)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		52.2 lbs
    7.0
    Frame
    		Aluminum
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Formula Cura Hydraulic Disc
    		Bosch 250W 50Nm mid-drive
    		Bosch 500Wh
    		Alfine
    Drivetrain
    		Internally Geared Hub
    Brand Site

    schindelhauerbikes.com

    Summary

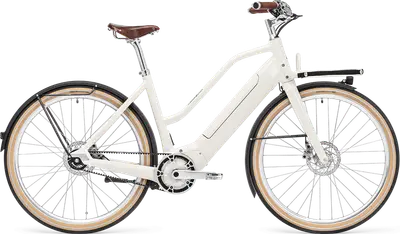

    		The Schindelhauer Hannah is a 650b aluminum frame women’s commuter e-bike with mid-range components and formula cura hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Hannah2023 Schindelhauer
    Frame

    Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded

    Colors: Graphite Black; Cream White

    Fork

    Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

    Bottom Bracket

    -

    Headset

    Tange Seiki - integrated, 1 1/8-1.5

    Stem

    Satori - Stealth, aluminium

    Handlebar

    Satori - Noirette, aluminium

    Saddle

    Brooks - B17 S lady

    Seatpost

    Schindelhauer

    Type: Rigid

    Pedals

    Schindelhauer - Urban Pedal, aluminium, CNC machined

    Grips

    Schindelhauer - ergo leather grips

    Groupset
    Crank

    Miranda - Delta

    Shifters

    Shimano - Alfine 8-speed internal gear hub

    Brakes

    Formula - CURA disc brakes (hydraulic), 160 mm

    Type: Formula Cura Hydraulic Disc

    Wheels
    Rims

    Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced

    Tires

    WTB - Horizon 47-584, with reflex stripes

    Electric Components
    Motor

    Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h

    Battery

    Bosch - Powertube 500, intube battery, energy: 500 Wh

    Display

    Bosch - Purion

    Accessories
    Fenders

    Alumee - W52 Schindelhauer custom

    Racks

    Schindelhauer - aluminium, frame mounted, with VarioStrap system, ready for Ortlieb Rack-Lock, rear mudguard with integrated luggage stays
