MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Weight | 40.3 lbs | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| Shimano Hydraulic Disc | ||
| MAHLE 250W 65Nm hub-drive | ||
| MAHLE 250Wh | ||
| Pinion | ||
Drivetrain | Internally Geared Hub | |
Brand Site | ||

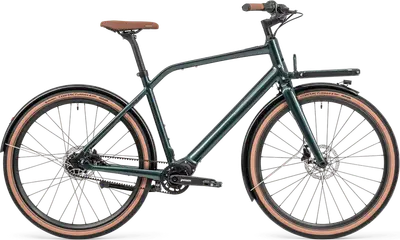

Summary | The Schindelhauer Emil is a 650b aluminum frame commuter e-bike with modest components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated motor connection, integrated seat post clamp, smooth welded, internal cable routing BB Standard: Pinion, Press Fit Colors: Mineral Grey; Midnight Green | |
|---|---|---|
Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes | |
Bottom Bracket | Pinion | |
Headset | Acros - ICR 1,5'' | |
Stem | Satori – Stealth, aluminium | |
Handlebar | Schindelhauer - CITY, aluminium | |
Saddle | Selle Royal - Essenza moderate | |
Seatpost | Schindelhauer Type: Rigid | |
Pedals | VP – Nylon, with grip tape | |
Grips | Schindelhauer |
Crank | Pinion | |
|---|---|---|
Shifters | Pinion C-Line gear box 6-/9-speed (XR) | |
Brakes | Shimano – MT200 disc brakes (hydraulic) 160 mm Type: Shimano Hydraulic Disc |
Rims | Schindelhauer – straight-pull front hub disc, Mahle - X20 motor, Kinlin - TL23R, Sapim – Race spokes, 3-cross and 2-cross laced | |
|---|---|---|
Tires | Continental Contact Urban 50-584 / WTB – Horizon 47-584, with reflex stripes |
Motor | Mahle X20 – Hub Drive, 250 W Power, 65 Nm, 12 mm ThroughAxle | |
|---|---|---|
Battery | Mahle X20 – Intube Akku 250 Wh capacity | |
Display | Mahle X20 - Head Unit in top tube, with Bluetooth und ANT+ |
Fenders | Curana – Apollo (extrusion profile mudguards) | |
|---|---|---|
Racks | Schindelhauer – aluminium, frame mounted, with VarioStrap system |
