    UrbanRay E 8.02022 R RAYMON
    Recommended
    MSRP
    ($4,053)
    Where to Buy
    —
    $1

    At

    Category
    		General Urban, E-Bike
    Weight
    		57.4 lbs
    7.9
    Frame
    		Aluminum
    		Suntour MOBIE
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano Hydraulic Disc
    		Yamaha 250W 50Nm mid-drive
    		Yamaha 500Wh
    		Gates CDX, Nexus
    Drivetrain
    		Belt Drive, Internally Geared Hub
    Suspension
    		Hardtail
    Front Travel
    		75mm
    Brand Site

    r-raymon-bikes.com

    Summary

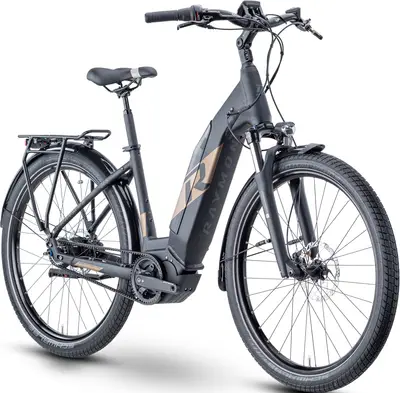

    		The R RAYMON UrbanRay E 8.0 is a 650b aluminum frame general urban e-bike with high-end components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    UrbanRay E 8.02022 R RAYMON
    Frame

    27.5", Alloy 6061, Partially integrated battery

    Fork

    SR SUNTOUR Mobie-A32, Coil, 75 mm, tapered

    Travel: 75mm

    Spring Type: Coil

    Headset

    R Raymon ZS44/ZS56

    Stem

    R Raymon 31.8, adjustable

    Handlebar

    R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 31.6 mm, 300 mm, cushioned

    Type: Rigid

    Pedals

    R Raymon, aluminum

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Crank

    Gates CDX Belt, 46 T

    Shifters

    Shimano Nexus, SL-C6000, Revoshift

    Cassette

    Gates SureFit, 24

    Chain

    Gates CDX Belt

    Brakes

    Front: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT200, 2-piston, Hydraulic disc brake

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DB600F, 6-hole, 9x100 mm, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Shimano Nexus, SG-C6001, SG-C6001-8

    Tires

    Schwalbe Super Moto-X, Performance, Reflex, 62-584, 27.5, 2.4

    Disc Rotors

    Shimano SM-RT56, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-CE, 250 W, 50 Nm

    Battery

    Yamaha EX500, 500 Wh, 36 V

    Display

    Yamaha Display C, LCD-Display, Bluetooth, Micro-USB

    Charger

    Yamaha rapid charger, 4 A

    Accessories
    Lights

    Front: Herrmans MR4, 40 lx, Rear: AXA Blueline E

    Fenders

    Eurofender Tempo

    Racks

    R Raymon, MIK, 25 kg belastbar
