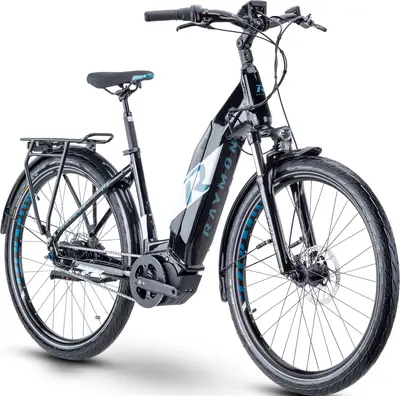

    UrbanRay E 7.02022 R RAYMON
    Recommended
    MSRP
    ($3,705)
    Where to Buy
    —
    $1

    At

    Category
    		General Urban, E-Bike
    Weight
    		60.2 lbs
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano Hydraulic Disc
    		Yamaha 250W 50Nm mid-drive
    		Yamaha 500Wh
    		Nexus
    Drivetrain
    		Internally Geared Hub
    Suspension
    		Hardtail
    Front Travel
    		80mm
    Brand Site

    r-raymon-bikes.com

    Summary
    		The R RAYMON UrbanRay E 7.0 is a 650b aluminum frame general urban e-bike with modest components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Geometry
    Specs
    UrbanRay E 7.02022 R RAYMON
    Frame

    27.5", Alloy 6061, Partially integrated battery

    Fork

    SR SUNTOUR NVX, Coil, 80 mm

    Travel: 80mm

    Spring Type: Coil

    Headset

    R Raymon ZS44/ZS56

    Stem

    R Raymon 31.8, adjustable

    Handlebar

    R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 31.6 mm, 300 mm, cushioned

    Type: Rigid

    Pedals

    R Raymon, aluminum

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Crank

    R Raymon, 38 T

    Shifters

    Shimano Nexus, SL-C6000, Revoshift

    Cassette

    Shimano SM-Gear, 19

    Chain

    KMC Z1 Wide

    Brakes

    Front: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT200, 2-piston, Hydraulic disc brake

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DB600F, 6-hole, 9x100 mm, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: Shimano Nexus, SG-C6001, SG-C6001-8

    Tires

    Continental CONTACT Plus City, Reflex, 56-584, 27.5, 2.2

    Disc Rotors

    Shimano SM-RT56, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-CE, 250 W, 50 Nm

    Battery

    Yamaha EX500, 500 Wh, 36 V

    Display

    Yamaha Display C, LCD-Display, Bluetooth, Micro-USB

    Charger

    Yamaha rapid charger, 4 A

    Accessories
    Lights

    Front: Herrmans MR4, 40 lx, Rear: AXA Blueline E

    Fenders

    Eurofender Tempo

    Racks

    R Raymon, MIK
