Compare: 2025 R RAYMON Trailray 170 Pro

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	Trailray 170 Pro2025 R RAYMON	Recommended

MSRP	($6,531)
Where to Buy	— $1 At
Category	Enduro, E-Bike
	6.0
Frame	Aluminum
	RockShox ZEB Select
	RockShox Super Deluxe Select
Wheels	Aluminum
Wheel Size	29″
	Shimano SLX Hydraulic Disc
	Yamaha 600W 85Nm mid-drive
	800Wh
	SLX
Drivetrain	1 × 12
Suspension	Full
Front Travel	170mm
Rear Travel	160mm
Brand Site	raymon-bicycles.com

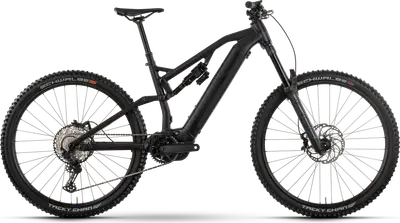

Summary	The R RAYMON Trailray 170 Pro is a 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

	Trailray 170 Pro2025 R RAYMON

Frame	29", Alloy 6061, removeable battery, boost, 160 mm Color: Black
Fork	RockShox ZEB Select, air, 170 mm, tapered Travel: 170mm Spring Type: Air
Shock	RockShox Super Deluxe Select, air, 230x65 mm Travel: 160mm
Stem	Raymon 35, 0 °, Ahead
Handlebar	Raymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm
Saddle	Raymon 143 VM Fit
Seatpost	Raymon, 34,9 mm, Dropper Post Type: Dropper

Groupset

Rear Derailleur	Shimano SLX, RD-M7100, Shadow Plus, 12-S
Crank	Raymon Pro, Narrow Wide, 36T
Shifters	Shimano SLX, SL-M7100, Rapidfire Plus
Brakes	Front: Shimano SLX, BR-M7120, 4-piston, hydr. disc brake, Rear: Shimano SLX, BR-M7120, 4-piston, hydr. disc brake Type: Shimano SLX Hydraulic Disc

Wheels

Rims	29"
Tires	Schwalbe Tacky Chan Evo, Super Trail, ADDIX Ultra Soft, 62-622, 29x2.4
Disc Rotors	Shimano SM-RT64, 203 mm, Center Lock

Electric Components
