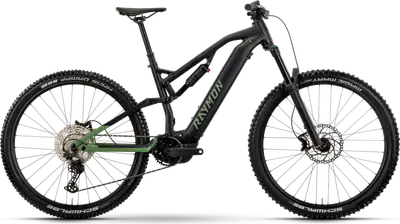

    Trailray 1502025 R RAYMON
    Recommended
    MSRP
    ($5,327)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    5.6
    Frame
    		Aluminum
    		Suntour Zeron
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Tektro Gemini Hydraulic Disc
    		Yamaha 600W 85Nm mid-drive
    		720Wh
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		140mm
    Brand Site

    raymon-bicycles.com

    Summary
    		The R RAYMON Trailray 150 is a 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Trailray 1502025 R RAYMON
    Frame

    29", Alloy 6061, removeable battery, boost, 140 mm

    Color: Black

    Fork

    SR Suntour Zeron36X RC, air, 150 mm, tapered

    Travel: 150mm

    Spring Type: Air

    Shock

    SR Suntour EdgeX R, air, 230x57,5 mm

    Travel: 140mm

    Stem

    Raymon 35, 0 °, Ahead

    Handlebar

    Raymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm

    Saddle

    Raymon 143 VM Fit

    Seatpost

    Raymon, 34,9 mm, Dropper Post

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M6100, Shadow Plus, 12-S

    Crank

    Raymon, Narrow Wide, 36T

    Shifters

    Shimano Deore, SL-M6100, Rapidfire Plus

    Brakes

    Front: Tektro Gemini SL, 4-piston, hydr. disc brake, Rear: Tektro Gemini SL, 4-piston, hydr. disc brake

    Type: Tektro Gemini Hydraulic Disc

    Wheels
    Rims

    29"

    Tires

    Schwalbe Magic Mary Perf, ADDIX, 62-622, 29x2.4

    Disc Rotors

    Tektro TR17, 203 mm, 6-bolt

    Electric Components
    Motor

    Yamaha PW-X3, 250/600 W, 85 Nm

    Battery

    720 Wh, 36 V

    Display

    Yamaha Display A2, LCD, Micro-USB
