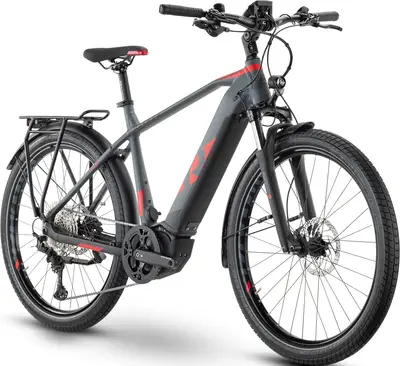

    TourRay E 8.02021 R RAYMON
    Recommended
    MSRP
    ($4,632)
    Where to Buy
    —
    $1

    At

    Category
    		Touring, E-Bike
    Weight
    		60.0 lbs
    5.9
    Frame
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano Deore Hydraulic Disc
    		Yamaha 250W 80Nm mid-drive
    		630Wh
    		XT, Deore
    Drivetrain
    		1 × 12
    Brand Site

    r-raymon-bikes.com

    Summary
    		The R RAYMON TourRay E 8.0 is a carbon frame touring e-bike with upper mid-range components and shimano deore hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    TourRay E 8.0
    Other Touring bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TourRay E 8.02021 R RAYMON
    Frame

    27.5", Carbon, Integrated battery

    Fork

    SR SUNTOUR Mobie-A32

    Spring Type: Coil

    Stem

    R Raymon 31.8, adjustable

    Handlebar

    R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 30.9 mm, Patent

    Type: Rigid

    Pedals

    R Raymon, Alloy

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Rear Derailleur

    Shimano Deore XT, RD-M8100, Shadow Plus, 12-S

    Shifters

    Shimano Deore, SL-M6100, Rapidfire Plus, 12-speed

    Cassette

    Shimano CS-M6100, 10-51 T

    Chain

    KMC e12S

    Brakes

    Front: Shimano BR-MT410, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT410, 2-piston, Hydraulic disc brake

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    Rim: Mach1 Trucky30, Hubs: R Raymon DA210, 15x100/12x148mm

    Tires

    Schwalbe Super Moto-X, Performance, Reflex, 62-584, 27.5x2.4

    Electric Components
    Motor

    Yamaha PW-X2, 250W, 80Nm

    Battery

    Simplo EnergyTube, 630 Wh, 36 V

    Display

    Yamaha Display C, LCD-Display, Bluetooth

    Charger

    Simplo rapid charger, 4 A

    Accessories
    Lights

    Front: Litemove HKSE-70, 70 lx, Rear: AXA Blueline E

    Fenders

    Eurofender Tempo 65

    Racks

    R Raymon Tour, MIK
