MSRP | ($3,322) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 51.6 lbs | |
Frame | Aluminum | |
| RockShox Recon Silver RL | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Tektro Hydraulic Disc | ||
| Yamaha 250W 70Nm mid-drive | ||
| Yamaha 500Wh | ||
| Deore | ||
Drivetrain | 1 × 10 | |
Brand Site | ||

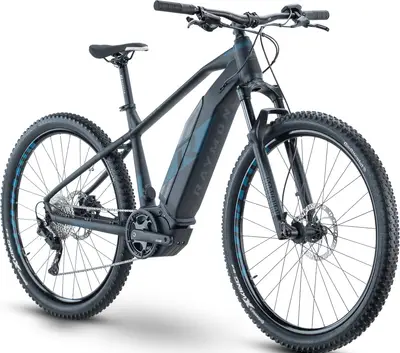

Summary | The R RAYMON HardRay E-Nine 6.0 is a 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | 29", Alloy 6061, Partially integrated battery | |
|---|---|---|
Fork | RockShox Recon Silver RL, Solo Air Spring Type: Air | |
Stem | R Raymon 31.8, 7 ° | |
Handlebar | R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm | |
Saddle | R Raymon MTB | |
Seatpost | R Raymon, 30.9 mm, Patent Type: Rigid | |
Pedals | R Raymon, Alloy | |
Grips | R Raymon Ergo |
Rear Derailleur | Shimano Deore, RD-M4120, Shadow, 10-S | |
|---|---|---|
Shifters | Shimano Deore, SL-M4100, Rapidfire Plus, 10-speed | |
Cassette | Shimano CS-M4100, 11-42 T | |
Chain | KMC e10S | |
Brakes | Front: Tektro HD-M275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M275, 2-piston, Hydraulic disc brake Type: Tektro Hydraulic Disc |
Rims | Rim: Mach1 Traxx, Front Hub: R Raymon DA211F, 15x110mm, Rear Hub: R Raymon DN662R, 9x141mm | |
|---|---|---|
Tires | Continental Cross King, 58-584, 27.5x2.3 |
Motor | Yamaha PW-ST, 250W, 70Nm | |
|---|---|---|
Battery | Yamaha EX500, 500 Wh, 36 V | |
Display | Yamaha Display A, LCD-Display | |
Charger | Yamaha rapid charger, 4 A |
