    HardRay E-Nine 4.02021 R RAYMON
    Recommended
    MSRP
    ($2,894)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		49.8 lbs
    3.9
    Frame
    		Aluminum
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Tektro Hydraulic Disc
    		Yamaha 250W 70Nm mid-drive
    		Yamaha 500Wh
    		Altus
    Drivetrain
    		1 × 9
    Brand Site

    r-raymon-bikes.com

    Summary

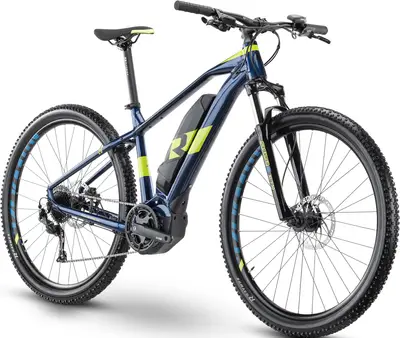

    		The R RAYMON HardRay E-Nine 4.0 is a 29″ aluminum frame hardtail crosscountry e-bike with modest components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Handling
    nimblestable
    HardRay E-Nine 4.0
    Other Crosscountry bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    HardRay E-Nine 4.02021 R RAYMON
    Frame

    29", Alloy 6061, External battery

    Fork

    SR SUNTOUR XCT30

    Spring Type: Coil

    Stem

    R Raymon 31.8, 7 °

    Handlebar

    R Raymon 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm

    Saddle

    R Raymon MTB

    Seatpost

    R Raymon, 30.9 mm, Patent

    Type: Rigid

    Pedals

    R Raymon Plastic

    Grips

    R Raymon Ergo

    Groupset
    Rear Derailleur

    Shimano Altus, RD-M2000, Shadow, 9-S

    Shifters

    Shimano Altus, SL-M2010-9R, Rapidfire Plus

    Cassette

    Shimano CS-HG200, 11-36 T

    Chain

    KMC Z9

    Brakes

    Front: Tektro HD-M275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M275, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Rim: Mach1 Traxx, Hubs: R Raymon DB-600F, 9x100/9x135mm

    Tires

    Impac Ridgepac, 57-584, 27.5x2.25

    Electric Components
    Motor

    Yamaha PW-ST, 250W, 70Nm

    Battery

    Yamaha DT500, 500 Wh, 36 V

    Display

    Yamaha Display A, LCD-Display

    Charger

    Yamaha rapid charger, 4 A
