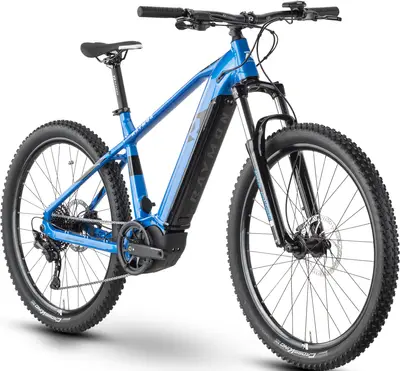

    HardRay E 6.02022 R RAYMON
    Recommended
    MSRP
    ($4,187)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		54.0 lbs
    4.6
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Tektro Hydraulic Disc
    		Yamaha 250W 80Nm mid-drive
    		630Wh
    		Tektro EDRIVE 9
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    r-raymon-bikes.com

    Summary
    		The R RAYMON HardRay E 6.0 is a 27.5″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    HardRay E 6.0
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    HardRay E 6.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    HardRay E 6.02022 R RAYMON
    Frame

    27.5", Alloy 6061, Integrated battery

    Fork

    SR SUNTOUR XCM34 Boost NLO, Coil, 120 mm, tapered

    Travel: 120mm

    Spring Type: Coil

    Headset

    R Raymon ZS44/ZS56

    Stem

    R Raymon 31.8, 7 °, Ahead

    Handlebar

    R Raymon Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm

    Saddle

    R Raymon MTB

    Pedals

    R Raymon, aluminum

    Grips

    R Raymon MTB, Lock-on grips

    Groupset
    Rear Derailleur

    Tektro RD-M350, 9-S

    Crank

    R Raymon, 38 T

    Shifters

    Tektro SL-M350R

    Cassette

    Tektro CS-M350, 11-46 T

    Chain

    KMC e9S

    Chain Guide

    Direct Mount

    Brakes

    Front: Tektro HD-M275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M275, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Mach 1 TRAXX, With eyelets, Tubeless ready / Hub: R Raymon DA210F, 6-hole, 15x110 mm, Rear: Rim: Mach 1 TRAXX, With eyelets, Tubeless ready / Hub: R Raymon DA210R, 6-hole, 12x148 mm

    Tires

    Continental Cross King, 58-584, 27.5, 2.3

    Disc Rotors

    Tektro TR24, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-X2, 250 W, 80 Nm

    Battery

    Simplo, 630 Wh, 36 V

    Display

    Yamaha Display A, LCD-Display, Micro-USB

    Charger

    Simplo rapid charger, 4 A
