    HardRay E 2.02022 R RAYMON
    Recommended
    MSRP
    ($2,908)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    Weight
    		48.3 lbs
    4.4
    Frame
    		Aluminum
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Tektro Hydraulic Disc
    		Yamaha 250W 50Nm mid-drive
    		Yamaha 500Wh
    		Tektro EDRIVE 9
    Drivetrain
    		1 × 8
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    r-raymon-bikes.com

    Summary

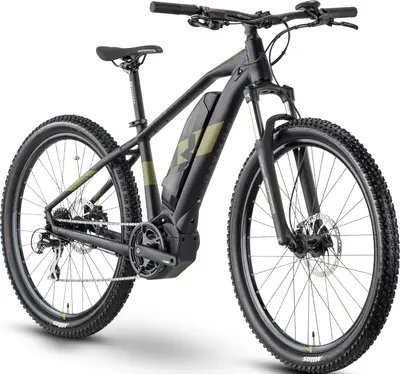

    		The R RAYMON HardRay E 2.0 is a 27.5″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    HardRay E 2.0
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    HardRay E 2.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    HardRay E 2.02022 R RAYMON
    Frame

    27.5", Alloy 6061, External battery

    Fork

    SR SUNTOUR XCT30 HLO, Coil, 100 mm

    Travel: 100mm

    Spring Type: Coil

    Headset

    R Raymon ZS44/ZS56

    Stem

    R Raymon 31.8, 7 °, Ahead

    Handlebar

    R Raymon Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm

    Saddle

    R Raymon MTB

    Seatpost

    R Raymon, 31.6 mm, 350 mm, Patent

    Type: Rigid

    Pedals

    R Raymon, plastic

    Grips

    R Raymon MTB, Lock-on grips

    Groupset
    Rear Derailleur

    Tektro RD-T350, 8-S

    Crank

    R Raymon, 38 T

    Shifters

    Tektro SL-M330R

    Cassette

    Tektro CS-M330, 11-42 T

    Chain

    KMC Z8

    Chain Guide

    Direct Mount

    Brakes

    Front: Tektro HD-M275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M275, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Mach 1 TRAXX, With eyelets, Tubeless ready / Hub: R Raymon DB600F, 6-hole, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 TRAXX, With eyelets, Tubeless ready / Hub: R Raymon DB602R, 6-hole, 9x135 mm, Quick-release axle

    Tires

    Mitas Ocelot, 60-584, 27.5, 2.35

    Disc Rotors

    Tektro TR24, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-CE, 250 W, 50 Nm

    Battery

    Yamaha DT500, 500 Wh, 36 V

    Display

    Yamaha Display A, LCD-Display, Micro-USB

    Charger

    Yamaha rapid charger, 4 A
