    FourRay E 1.02021 R RAYMON
    Recommended
    MSRP
    ($1,977)
    Where to Buy
    —
    $1

    At

    Category
    		Mountain Youth, E-Bike
    Weight
    		44.8 lbs
    2.9
    Frame
    		Aluminum
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		24″
    		Tektro Hydraulic Disc
    		250W 50Nm hub-drive
    		300Wh
    		Altus
    Drivetrain
    Brand Site

    r-raymon-bikes.com

    Summary

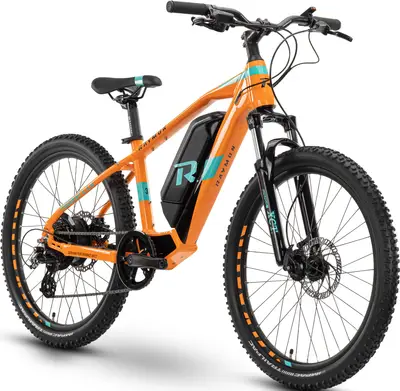

    		The R RAYMON FourRay E 1.0 is a 24″ aluminum frame mountain youth e-bike with modest components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Handling
    nimblestable
    FourRay E 1.0
    Other Mountain Youth bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    FourRay E 1.02021 R RAYMON
    Frame

    24", Alloy 6061, External battery

    Fork

    SR SUNTOUR XCT-JR

    Spring Type: Coil

    Stem

    R Raymon 25.4, 20 °

    Handlebar

    R Raymon 25.4 mm, 580 mm, Sweep: 9 °, Rise: 30 mm

    Saddle

    R Raymon Kids

    Seatpost

    R Raymon, 27.2 mm, Patent

    Type: Rigid

    Pedals

    R Raymon

    Grips

    R Raymon Kids

    Groupset
    Rear Derailleur

    Shimano Altus, RD-M310, 8-S

    Shifters

    Shimano Altus, SL-M315, Rapidfire Plus, 8-speed

    Cassette

    Shimano CS-HG200, 12-32 T

    Chain

    KMC Z8.3

    Brakes

    Front: Tektro HD-M276, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M276, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Rim: Ryde Rival23, Front Hub: R Raymon MD-JA159F, 9x100mm

    Tires

    Impac TrailPac, 54-507, 24x2.1

    Electric Components
    Motor

    SR Suntour R250HP, 250W, 50Nm

    Battery

    SR SUNTOUR Battery, 300 Wh, 36 V

    Display

    SR SUNTOUR, OLED-Display

    Charger

    Phylion Battery Charger, 2 A
