    CrossRay FS E 6.02022 R RAYMON
    Recommended
    MSRP
    ($4,979)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		60.8 lbs
    7.9
    Frame
    		Aluminum
    		RockShox Recon Silver RL
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		SRAM DB8 Hydraulic Disc
    		Yamaha 250W 70Nm mid-drive
    		630Wh
    		GX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		120mm
    Brand Site

    r-raymon-bikes.com

    Summary

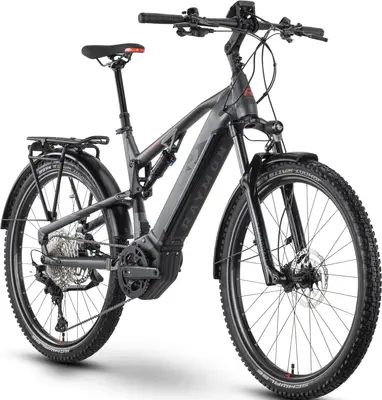

    		The R RAYMON CrossRay FS E 6.0 is a 650b aluminum frame hybrid e-bike with high-end components and sram db8 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    CrossRay FS E 6.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CrossRay FS E 6.02022 R RAYMON
    Frame

    28", Alloy 6061, Integrated battery, 120 mm

    Fork

    RockShox Recon Silver RL, Solo Air, Air, 130 mm, tapered

    Travel: 130mm

    Spring Type: Air

    Shock

    RockShox Monarch RT, Air, 190x51 mm

    Travel: 120mm

    Headset

    R Raymon ZS44/ZS56

    Stem

    Husqvarna 31.8, Ahead, adjustable

    Handlebar

    R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 31.6 mm, Dropper post

    Type: Dropper

    Pedals

    R Raymon, aluminum

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Rear Derailleur

    SRAM GX Eagle, 12-S

    Crank

    R Raymon, Narrow Wide, 38 T

    Shifters

    SRAM GX Eagle, Single Click

    Cassette

    SRAM PG-1230, 11-50 T

    Chain

    SRAM GX Eagle

    Chain Guide

    Direct Mount

    Brakes

    Front: SRAM DB8, 4-piston, Hydraulic disc brake, Rear: SRAM DB8, 4-piston, Hydraulic disc brake

    Type: SRAM DB8 Hydraulic Disc

    Brake Levers

    SHIM-14_Y_3

    Wheels
    Rims

    Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210F, Center lock, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210R, Center lock, 12x148 mm, thru axle

    Tires

    Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5, 2.35

    Disc Rotors

    SRAM Centerline, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-ST, 250 W, 70 Nm

    Battery

    Simplo, 630 Wh, 36 V

    Display

    Yamaha Display C, LCD-Display, Bluetooth, Micro-USB

    Charger

    Simplo rapid charger, 4 A

    Accessories
    Lights

    Front: Litemove HKSE-70, 70 lx, Parking light, Rear: AXA Juno E, Parking light

    Fenders

    Curana Apollo

    Racks

    R Raymon Tour FS, MIK
