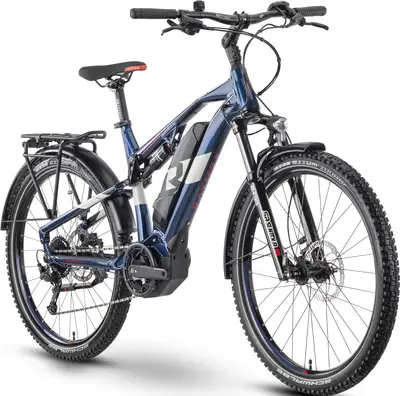

    CrossRay FS E 4.02022 R RAYMON
    Recommended
    MSRP
    ($4,071)
    Where to Buy
    —
    $1

    At

    Category
    		Hybrid, E-Bike
    Weight
    		49.6 lbs
    6.9
    Frame
    		Aluminum
    		Suntour XCR
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Tektro Hydraulic Disc
    		Yamaha 250W 60Nm mid-drive
    		Yamaha 500Wh
    		Tektro EDRIVE 9
    Drivetrain
    		1 × 9
    Suspension
    		Full
    Front Travel
    		120mm
    Rear Travel
    		120mm
    Brand Site

    r-raymon-bikes.com

    Summary
    		The R RAYMON CrossRay FS E 4.0 is a 650b aluminum frame hybrid e-bike with upper mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    CrossRay FS E 4.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CrossRay FS E 4.02022 R RAYMON
    Frame

    28", Alloy 6061, External battery, 120 mm

    Fork

    SR SUNTOUR XCR34 Boost LO, Coil, 120 mm, tapered

    Travel: 120mm

    Spring Type: Coil

    Shock

    SR SUNTOUR Raidon R, Air, 190x51 mm

    Travel: 120mm

    Headset

    R Raymon ZS44/ZS56

    Stem

    Husqvarna 31.8, Ahead, adjustable

    Handlebar

    R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 31.6 mm, 300 mm, Patent

    Type: Rigid

    Pedals

    R Raymon, aluminum

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Rear Derailleur

    Tektro RD-M350, 9-S

    Crank

    R Raymon, 38 T

    Shifters

    Tektro SL-M350R

    Cassette

    Tektro CS-M350, 11-46 T

    Chain

    KMC e9S

    Chain Guide

    Direct Mount

    Brakes

    Front: Tektro HD-T275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M275, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210R, 6-hole, 12x148 mm, thru axle

    Tires

    Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5, 2.35

    Disc Rotors

    Tektro TR24, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-TE, 250 W, 60 Nm

    Battery

    Yamaha DT500, 500 Wh, 36 V

    Display

    Yamaha Display A, LCD-Display, Micro-USB

    Charger

    Yamaha rapid charger, 4 A

    Accessories
    Lights

    Front: Herrmans MR4, 120 lm, Parking light, Rear: AXA Juno E, Parking light

    Fenders

    Curana Apollo

    Racks

    R Raymon Tour FS, MIK
