Today’s Deals | Recommended |
|---|
MSRP | ($4,071) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Weight | 55.7 lbs | |
Frame | Aluminum | |
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Shimano Hydraulic Disc | ||
| Yamaha 250W 70Nm mid-drive | ||
| Yamaha 500Wh | ||
| Nexus | ||
Drivetrain | Internally Geared Hub | |
Brand Site | ||

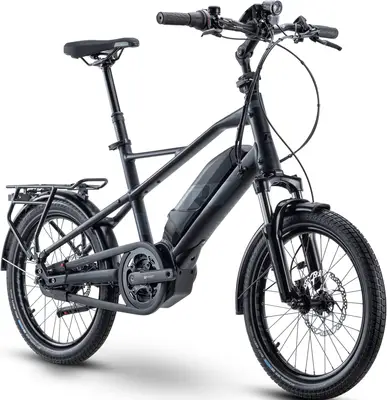

Summary | The R RAYMON CompactRay E 4.0 is a 20″ aluminum frame commuter e-bike with modest components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | 20", Alloy 6061, External battery | |
|---|---|---|
Fork | SR SUNTOUR Mobie-A32 NLO Spring Type: Coil | |
Stem | R Raymon 31.8 | |
Handlebar | R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm | |
Saddle | R Raymon Ergo | |
Seatpost | R Raymon, 34.9 mm, Dropper post Type: Dropper | |
Pedals | R Raymon Plastic | |
Grips | R Raymon Ergo |
Shifters | Shimano Nexus, SL-C6000-8, Revo Shift, 8-speed | |
|---|---|---|
Cassette | Shimano SM-Gear, 16 | |
Chain | KMC Z1 Narrow | |
Brakes | Front: Shimano BR-MT400, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT400, 2-piston, Hydraulic disc brake Type: Shimano Hydraulic Disc |
Rims | Rim: Mach1 650, Front Hub: Shimano MT400B, 15x100mm, Rear Hub: Shimano SG-C6001-8D | |
|---|---|---|
Tires | Schwalbe Big Ben, Performance, Reflex, 55-406, 20x2.1 |
Motor | Yamaha PW-ST, 250W, 70Nm | |
|---|---|---|
Battery | Yamaha DT500, 500 Wh, 36 V | |
Display | Yamaha Display C, LCD-Display, Bluetooth | |
Charger | Yamaha rapid charger, 4 A |
Lights | Front: Trelock Veo, 50 lx, Rear: Herrmans BR12 Reflector | |
|---|---|---|
Fenders | Curana Apollo | |
Racks | R Raymon, MIK |
