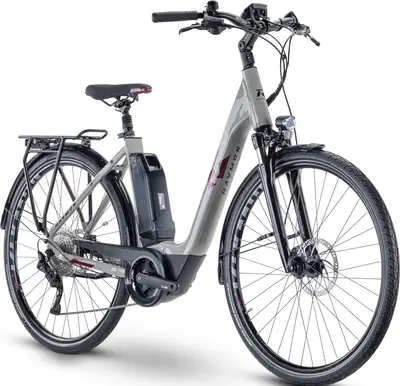

    CityRay E 5.02021 R RAYMON
    Recommended
    MSRP
    ($3,358)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		56.4 lbs
    6.8
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Tektro Hydraulic Disc
    		Yamaha 250W 70Nm mid-drive
    		Yamaha 500Wh
    		Deore
    Drivetrain
    		1 × 10
    Brand Site

    r-raymon-bikes.com

    Summary
    		The R RAYMON CityRay E 5.0 is a 700c aluminum frame commuter e-bike with upper mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CityRay E 5.02021 R RAYMON
    Frame

    26", Alloy 6061, External battery

    Fork

    SR SUNTOUR NEX-E25

    Spring Type: Coil

    Stem

    R Raymon 31.8, adjustable

    Handlebar

    R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 30.9 mm, lowerable

    Type: Rigid

    Pedals

    R Raymon, Alloy

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M4120 Shadow, 10-S

    Shifters

    Shimano Deore, SL-M4100, Rapidfire Plus, 10-speed

    Chain

    KMC e10S

    Brakes

    Tektro HD-T275, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Rim: Mach1 630E, Front Hub: R Raymon MD-JA159F, 9x100mm, Rear Hub: R Raymon MD-JA259R, 9x135mm

    Tires

    Impac Roadpac, Reflex, 47-559, 26x1.85

    Electric Components
    Motor

    Yamaha PW-ST, 250W, 70Nm

    Battery

    Yamaha EX500, 500 Wh, 36 V

    Display

    Yamaha Display C, LCD-Display, Bluetooth

    Charger

    Yamaha rapid charger, 4 A

    Accessories
    Lights

    Front: Herrmans MR4, 40 lx, Rear: AXA Blueline E

    Fenders

    Eurofender Tempo 58

    Racks

    R Raymon, MIK
