MSRP | ($3,358) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Frame | Aluminum | |
Wheels | Aluminum | |
Wheel Size | 700c | |
| Shimano Coaster | ||
| Yamaha 250W 50Nm mid-drive | ||
| Yamaha 500Wh | ||
| Nexus | ||
Drivetrain | Internally Geared Hub | |
Suspension | Hardtail | |
Front Travel | 50mm | |
Brand Site | ||

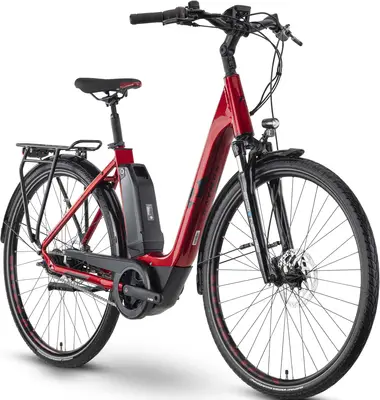

Summary | The R RAYMON CityRay E 4.0 CB is a 700c aluminum frame commuter e-bike with modest components and shimano coaster brakes. | |
Ask 99 Spokes
Frame | 26", Alloy 6061, External battery | |
|---|---|---|
Fork | SR SUNTOUR NEX-E25, Coil, 50 mm Travel: 50mm Spring Type: Coil | |
Headset | R Raymon ZS44/ZS56 | |
Stem | R Raymon 31.8, adjustable | |
Handlebar | R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm | |
Saddle | R Raymon Ergo | |
Seatpost | R Raymon, 30.9 mm, 350 mm, cushioned Type: Rigid | |
Pedals | R Raymon, aluminum | |
Grips | R Raymon Ergo, Lock-on grips |
Crank | R Raymon, 38 T | |
|---|---|---|
Shifters | Shimano Nexus, SL-C6000, Revoshift | |
Cassette | Shimano SM-Gear, 19 | |
Chain | KMC Z1 Wide | |
Chain Guide | Horn Catena 18/38 | |
Brakes | Front: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Coaster brake Type: Shimano Coaster |
Rims | Front: Rim: Mach 1 630E, With eyelets / Hub: Shimano TX505, Center lock, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 630E, With eyelets / Hub: Shimano Nexus, SG-C6001, SG-C6001-8 | |
|---|---|---|
Tires | Impac Roadpac, Reflex, 47-559, 26, 1.85 | |
Disc Rotors | Shimano SM-RT10, 180 mm, Center lock |
Motor | Yamaha PW-CE, 250 W, 50 Nm | |
|---|---|---|
Battery | Yamaha EX500, 500 Wh, 36 V | |
Display | Yamaha Display C, LCD-Display, Bluetooth, Micro-USB | |
Charger | Yamaha rapid charger, 4 A |
Lights | Front: AXA Compactline 20, 20 lx, Rear: AXA Blueline E | |
|---|---|---|
Fenders | Eurofender Tempo | |
Racks | R Raymon, MIK |
