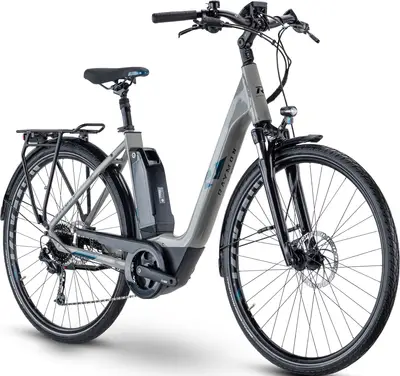

    CityRay E 3.02022 R RAYMON
    Recommended
    MSRP
    ($3,257)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    6.8
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Tektro Hydraulic Disc
    		Yamaha 250W 60Nm mid-drive
    		Yamaha 500Wh
    		Tektro EDRIVE 9
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		50mm
    Brand Site

    r-raymon-bikes.com

    Summary
    		The R RAYMON CityRay E 3.0 is a 700c aluminum frame commuter e-bike with upper mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    CityRay E 3.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CityRay E 3.02022 R RAYMON
    Frame

    26", Alloy 6061, External battery

    Fork

    SR SUNTOUR NEX-E25, Coil, 50 mm

    Travel: 50mm

    Spring Type: Coil

    Headset

    R Raymon ZS44/ZS56

    Stem

    R Raymon 31.8, adjustable

    Handlebar

    R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm

    Saddle

    R Raymon Ergo

    Seatpost

    R Raymon, 30.9 mm, 350 mm, cushioned

    Type: Rigid

    Pedals

    R Raymon, aluminum

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Rear Derailleur

    Tektro RD-T350, 9-S

    Crank

    R Raymon, 38 T

    Shifters

    Tektro SL-M350R

    Cassette

    Tektro CS-M350, 11-46 T

    Chain

    KMC e9S

    Chain Guide

    Horn Catena 18/38

    Brakes

    Front: Tektro HD-T275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-T275, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Mach 1 630E, With eyelets / Hub: R Raymon JA159F, 6-hole, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 630E, With eyelets / Hub: R Raymon JA259R, 6-hole, 9x135 mm, Quick-release axle

    Tires

    Impac Roadpac, Reflex, 47-559, 26, 1.85

    Disc Rotors

    Tektro TR24, 180 mm, 6-hole

    Electric Components
    Motor

    Yamaha PW-TE, 250 W, 60 Nm

    Battery

    Yamaha EX500, 500 Wh, 36 V

    Display

    Yamaha Display C, LCD-Display, Bluetooth, Micro-USB

    Charger

    Yamaha rapid charger, 4 A

    Accessories
    Lights

    Front: AXA Compactline 20, 20 lx, Rear: AXA Blueline E

    Fenders

    Eurofender Tempo

    Racks

    R Raymon, MIK
