 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
| Carbon | ||
Fork | Fox Performance Float 36 | |
Shock | Fox Float X2 Performance | |
Wheels | Aluminum | |
| 29″ / 27.5″ | ||
Brakes | Hydraulic Disc | |
| Brose 90Nm mid-drive | ||
| 750Wh | ||
Groupset | XT, e*thirteen | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 160mm | |
Brand Site | ||

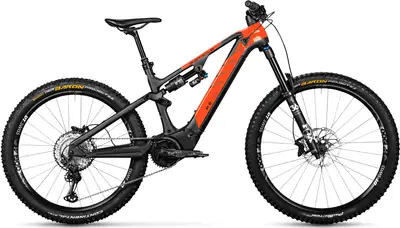

Summary | The Rotwild R.E750 Core is a 29″ / 27.5″ carbon frame full suspension enduro e-bike with upper mid-range components. | |
Frame | Carbon Fiber | |
|---|---|---|
Fork | FOX FLOAT 36 Performance E-Bike+, GRIP damper | |
Shock | FOX FLOAT X2 Performance, 2-position lever, trunnion mount | |
Headset | Acros RW750 Block Lock | |
Stem | S35, 35mm clamp, 50mm length, MonkeyLink light mount ready | |
Handlebar | B35, 35mm clamp diameter, 15mm rise, 780mm width | |
Saddle | Ergon SM Sport | |
Seatpost | Crankbrother Highline 20 dropper, Drop: 125mm (SM), 150mm (MD/LG/XL) | |
Pedals | N/A | |
Grips | Ergon GD10 Slim Factory, Frozen |
Rear Derailleur | Shimano XT 8100, 12-speed | |
|---|---|---|
Front Derailleur | N/A | |
Crank | e*thirteen Plus, Length: 160mm (SM/MD), 165mm (LG/XL) | |
Shifters | Shimano XT, 12-speed | |
Cassette | Shimano CS 7100, 12-speed, 10-51 tooth | |
Chain | Shimano HG 7100, 12-speed | |
Chain Guide | Rotwild SL750 upper guide | |
Brakes | Shimano 520, Shimano 203mm rotors (RT64 front, RT600 rear) | |
Brake Levers | Shimano 520 |
Rims | DT Swiss H1900 Spline 30 wheelset, 29" front, 27.5" rear | |
|---|---|---|
Spokes | DT Swiss H1900 Spline 30 wheelset | |
Front Hub | DT Swiss H1900 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear | |
Rear Hub | DT Swiss H1900 Spline 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear | |
Tires | Continental Baron Projekt, 29" x 2.4" (front), 27.5" x 2.6" (rear) |
Motor | Brose Drive S Mag, air cooler skid plate, 90Nm | |
|---|---|---|
Battery | Rotwild IPU750, removeable, semi-integrated |
