MSRP | ($9,296) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail, E-Bike | |
Frame | Carbon | |
| Fox Performance Float 36 | ||
| Fox Float X2 Performance | ||
Wheels | Aluminum | |
Wheel Size | 29″ / 27.5″ | |
| Magura MT5 Hydraulic Disc | ||
| Shimano 600W 85Nm mid-drive | ||
| 720Wh | ||
| XT | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 148mm | |
Brand Site | ||

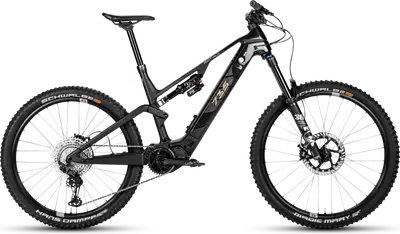

Summary | The Rotwild R.E735 CORE is a 29″ / 27.5″ carbon frame full suspension trail e-bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | High Modulus Carbon Tire Clearance: 2.6" | |
|---|---|---|
Fork | FOX 36 Float Performance, 170 mm / 3-POS Fit Grip / Micro Adjust / E-Tuned Travel: 170mm Spring Type: Air | |
Shock | FOX Float X2 Performance, 210 x 55 mm / HSC/LSC HSR/LSR / 2-POS Lever Travel: 148mm | |
Headset | ACROS RW735 1.5 | |
Stem | e*thirteen Plus, Ø35 mm / 50 mm / AL7050 I.C.R. | |
Handlebar | e*thirteen Plus, Ø35 mm / 20 mm Rise / 780 mm Width / AL7050 I.C.R | |
Saddle | ERGON SM Enduro Comp | |
Seatpost | 8PINS H01, Ø34.9 mm / 25 mm Offset / 160 mm (M) / 180 mm (L) / 200 mm (XL) Type: Dropper | |
Grips | ERGON GD10, Slim Factory Frozen |
Rear Derailleur | SHIMANO XT 8100, 12-Speed / SGS / Hyperglide+ | |
|---|---|---|
Crank | e*thirteen Plus, 160 mm (S) / 165 mm (M, L, XL) | |
Shifters | SHIMANO XT 8100, I-Spec EV | |
Cassette | SHIMANO CS 6100, 10-51 T. / 12-Speed | |
Chain | SHIMANO HG 7100, 12-Speed | |
Chain Guide | e*thirteen TRS | |
Brakes | Front: MAGURA MT5, HC-W, Rear: MAGURA MT5, HC-W Shiftmix Type: Magura MT5 Hydraulic Disc |
Rims | Front: CRANKBROTHERS Synthesis Enduro, 29" / 31.5 mm / 110-15 mm / TAS / 6-Bolt, Rear: CRANKBROTHERS Synthesis Enduro, 27.5" / 29.5 mm / 148-12 mm / TAS / 6-Bolt | |
|---|---|---|
Tires | Front: SCHWALBE Magic Mary, TLE / 29 x 2.4 / Super Ground / Soft, Rear: SCHWALBE Hans Dampf Evo, TLE / 27.5 x 2.6 / Super Trail / Soft | |
Disc Rotors | MAGURA MDR-P, 220 mm |
Motor | SHIMANO EP801, 85 Nm / max. 600 W | |
|---|---|---|
Battery | IPU735 Carbon, 720 Wh / 36 V / 21.700 Cell / 3.520 g / QR-Button | |
Charger | ROTWILD - 4.5 A |
