MSRP | $1,950 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Utility, E-Bike | |
Weight | 85.5 lbs | |
Frame | Aluminum | |
| Steel | ||
Wheels | Aluminum | |
Wheel Size | 20″ | |
| Drum | ||
| 500W hub-drive | ||
| 1680Wh | ||
Drivetrain | ||
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

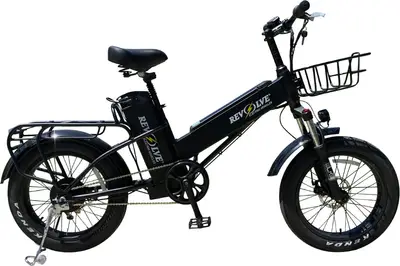

Summary | The Revolve 60+ Miles is a 20″ aluminum frame utility e-bike with drum brakes. | |
Ask 99 Spokes
Frame | Aluminum Alloy | |
|---|---|---|
Fork | CIVRAC MCR 30 Spring Suspension Fork, 100mm Travel, Compression Clicker with Lockout, 30mm Steel Stanchions, 135mm Hub Spacing, 9mm Axle with quick Release Skewer Travel: 100mm | |
Headset | Internal Cups, Straight 1-1/8" | |
Stem | SVMONO, Aluminum Alloy, 90mm Length, 31.8mm Clamp Diameter, One 5mm Steel Spacer, Twelve 10mm Steel Spacers | |
Handlebar | SVMONO, Aluminum Alloy, Low-Rise, 640mm Length | |
Saddle | Comfort Style, Sprung, Faux Leather | |
Seatpost | Aluminum Alloy, Suspension (40mm Travel, Preload Adjust in Base), Flip-Up Seat Clamp with Pin Type: Suspension | |
Pedals | Wellgo VB087, Aluminum Alloy Platform with Fixed Pins | |
Grips | Flat Rubber |
Crank | Prowheel Forged Aluminum Alloy, 170mm Length Crank Arms, 48 Tooth Chainring with an Plastic Guard | |
|---|---|---|
Cassette | 1 Single Speed, 16 Tooth Rear Sprocket | |
Brakes | Front: Mechanical Disc with 160mm Rotor, Rear: Mechanical Drum Brake, 5 Star Four-Finger Levers with Rubberized Edge and Motor Inhibitors Type: Drum |
Rims | Aluminum Alloy, Double Wall, 80mm Outer Width, 36 Hole | |
|---|---|---|
Spokes | Stainless Steel, 12 Gauge, Black with Silver Nipples | |
Tires | Kenda, 20" x 3.0" (78x406) |
Motor | Weight: 9 lbs (4.08 kg), Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts | |
|---|---|---|
Battery | Weight: 22.9 lbs (10.38 kg) (Front Battery 7.5lb and Rear Battery 15.4lb), Voltage: 48 volts, Amp Hours: 35 ah (One 10ah and One 25ah Pack), Watt Hours: 1680 wh (One 480wh and One 12,000wh Pack), Chemistry: Lithium-ion | |
Display | Fixed, Adjustable Angle, LED Console, Buttons: On/Off, Light, Mode |
