LG cells with DIB technology 36V 10.4Ah - internal downtube mounted

SR Suntour XCM32 Fork w/ 120mm travel hydraulic lockout and coil spring with pre-load adjuster

Reid Custom hydroformed alloy frame with DIB and internal wiring and cabling

Ananda M100 mid-drive motor (max torque 110Nm)

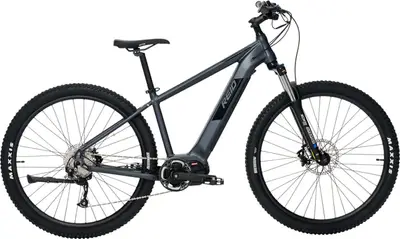

The new E-Trail 2.0 electric mountain bike sees some serious performance upgrades for riders looking to blast singletrack and trails. This super fun 29er with 120mm travel suspension fork and a punchy 110nm torque electric motor lets you explore up to 70km on a single charge while riding a balanced, trail-optimised rig.
The undeniable benefits of these amazing bikes has driven a surge in popularity. Advances in battery technology have meant faster, smaller, more powerful units; while the motors have gotten smoother and more discrete.The E-Trail 2.0 is a serious electric mountain bike optimised for riding singletrack and trails. This is a balanced eBike with the mid-drive motor unit located in the bottom bracket area and the powerful LG battery discretely integrated into the downtube to let you move the bike around as you take berms and obstacles at speed.The E-trail 2.0 electric bike is built around a lightweight double-butted 6061 hydroformed alloy 29er frame with modern trail geometry. Internal cabling keeps the wires tucked away and safe. A Suntour XCM32 120mm travel suspension fork with hydraulic lock out gives smooth control over broken ground and plenty of cushion to soak up the hits.Powering the ebike is a light and unobtrusive Ananda M100 mid-drive 250 watt electric motor with an impressive 110Nm of maximum torque for plenty of power in tricky pinch climbs and over obstacles. This powerful motor coupled with the Shimano 9 speed drivetrain will give you all the range you need for riding the full hill.The position of the motor in the bottom bracket area is optimal for keeping the centre of gravity low - for stable handling when descending on fast trails and when navigating technical climbs. The E-Trail 2 is powered by a high capacity and fast charging LG 36 volt 10.4 amp hour battery pack, internally mounted into the downtube of the frame. This elegant design really lets you feel the bike when riding. Choose your level of assistance up to 25km per hour on the handlebar mounted display unit, and power through up to 100 kilometres on a single charge.Braking power and control is delivered by the reliable and smooth NUTT Hydraulic Discs. Hydraulics offer more power with less lever force required than other systems, which gives better modulation and control in all riding conditions.Running on the popular 29er standard rims with Maxxis Rekon 2.4” tyres, this electric mountain bike is ready to go.
Our range of Electric Bikes all include the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts, 1 year/5,000 km (whichever comes first) warranty on eBike system components and 2 free services within the first 12 months. We also offer our Online customers a 30 Day Test Ride to guarantee you get a great deal.
Custom hydroformed 6061 alloy frame with DIB and internal wiring/cabling for a sleek finish.
Ananda M100 mid-drive electric motor with a punchy 110Nm of torque for powering through pinch climbs and technical sections.
Fast-charging and large capacity LG 36V 10.4AH battery for up to 70km range on a single charge.
Serious Suntour XCM32 coil suspension fork with 120mm travel and hydraulic lock out for comfort and control on the trail and efficiency on the climbs.
Nutt hydraulic disc brakes for stopping power and modulation control in the dirt and in the wet.
Shimano Altus 9-speed gearing, shifters and derailleur.
Grips the trail with chunky Maxxis Rekon 29er x 2.4” tyres.
Lifetime frame warranty, 2 years warranty on parts and two free services within 12 months of purchase to guarantee you get a great deal.
*image may not reflect actual specifications, please refer to specification table.
INSTORE / CLICK & COLLECT BIKE ORDERS
Bikes purchased Click & Collect or instore from our Ascot Vale, Dandenong, Sydney, Brisbane, Adelaide or Perth stores are fully assembled by a bike mechanic and ready to ride.
ONLINE BIKE ORDERS
For online home delivery orders, bikes are shipped in a box 85% assembled and require some basic final assembly like turning handlebars and inserting pedals. Click here for our Assembly Video Guides that give instructions on how to do this step-by-step.
Q. WHAT ARE THE BENEFITS OF AN ANANDA MID DRIVE MOTOR?
Mid-drive electric bikes offer more options in terms of gearing and smoother acceleration, plus it lowers the centre of gravity of the bike giving a more stable ride when in the air, riding over broken ground or cornering at speed.
Q. HOW FAST DOES AN EBIKE GO?
Electric bikes in Australia are limited to 250w and will assist you up to 25km/hr - going faster than this is up to the effort of the rider. Any motor providing more power will be classified as a motorbike and must be registered and ridden by a licenced rider.
Q. HOW FAR CAN I TRAVEL ON A FULL CHARGE?
The range you can expect depends on how hard the battery is working. This will be affected by factors like the weight of the rider, how much luggage you’re carrying, tyre pressure, hills/terrain, road condition, wind and the level of assistance or power setting you use.
You can expect the Shimano Steps system to last around 100km on the highest assistance setting even with hills and extra weight (ranges up to 185km under ideal conditions have been reported by Shimano in testing). The Bafang and Ananda electric bike systems will cover up to 70km depending on conditions.
Q. HOW DO I CHARGE AN EBIKE AND HOW LONG WILL IT TAKE?
Simply plug the charger into a standard wall socket at work or when you get home. To charge the Shimano Steps battery from 0% to 80% will take 2 hours, 100% in 4 hours. Most of the time though you’ll just need to top up rather than completely refill. Charging times are similar for the Bafang and Ananda systems.
Q. HOW MUCH DOES IT COST TO CHARGE?
The Shimano Steps system uses a 418Wh battery. At 30c/kWh x 0.418kWh = 12.5c for a full charge. Costs are similar with the Bafang and Ananda systems.
Q. CAN I RIDE IN THE RAIN?
Yes, all of these units are sealed and made for all-conditions riding.
Q. CAN I SWITCH OFF THE ENGINE AND RIDE IT LIKE NORMAL?
Yes. Remove the battery pack and it will feel very much like a normal bike.
Q. WHAT DOES ‘PEDELEC’ MEAN?
The most popular electric bike system in Australia is the pedelec (or pedal assist) system. You ride a pedaled assisted eBike by pedalling as normal, while the electric motor adds power to each pedal stroke - flattening out the hills and getting you up to speed with much less effort.
Q. HOW OFTEN SHOULD I SERVICE MY EBIKE?
We recommend your electric bike is serviced during the first 3 months of ownership as components bed in. Frequency of servicing after that depends on usage and what maintenance you choose to do yourself in terms of caring for the chain and other basic tasks. A regular rider who does not perform any maintenance may benefit from servicing every 6 months. Click here for more information on servicing.

MSRP	($1,761)
Where to Buy	— $1 At
Category	Trail, E-Bike
Weight	48.7 lbs
	3.7
Frame	Aluminum
	Suntour XCM
Wheels	Aluminum
Wheel Size	29″
	Hydraulic Disc
	Ananda 250W 110Nm mid-drive

	Acera, Altus
Drivetrain	1 × 9
Suspension	Hardtail
Front Travel	120mm
Brand Site	reidcycles.com.au
Summary	The REID E-Trail 2.0 eBike is a 29″ aluminum frame hardtail trail e-bike with modest components.

Frame	Reid Custom hydroformed alloy frame with DIB and internal wiring and cabling
Fork	SR Suntour XCM32 Fork w/ 120mm travel hydraulic lockout and coil spring with pre-load adjuster Travel: 120mm Spring Type: Coil
Bottom Bracket	Ananda M100 motor
Stem	Reid oversize alloy
Handlebar	Reid alloy oversize flat bar
Saddle	Reid MTB
Seatpost	Reid alloy 27.2mm micro adjust Type: Rigid
Pedals	Alloy platform
Grips	Ergonomic rubber grip

Rear Derailleur	Shimano Acera M3000 9 speed
Crank	Ananda 38T alloy
Shifters	Shimano Altus M2000 9 speed shifter
Cassette	Shimano M2000 9 speed cassette 11-36T
Chain	KMC X9
Brakes	Nutt Hydraulic Disc Brakes Type: Hydraulic Disc
Brake Levers	Nutt Levers

Rims	Reid 29er disc specific
Front Hub	Alloy QR disc mount
Rear Hub	Alloy QR disc mount
Tires	Maxxis Rekon 29 x 2.4

Motor	Ananda M100 mid-drive motor (max torque 110Nm)
Battery	LG cells with DIB technology 36V 10.4Ah - internal downtube mounted
Display	LCD multi-function display
